CABLE CONNECTORS
Comprehensive range of Cable Connectors, including cable lugs, links, and mechanical connectors. Designed to meet diverse requirements, our solutions are available in copper, aluminium, and bi-metal options, ensuring reliable and efficient connectivity for various industrial and electrical applications. Each product is crafted for durability, performance, and safety, catering to the highest standards in the industry.
Copper Connectors

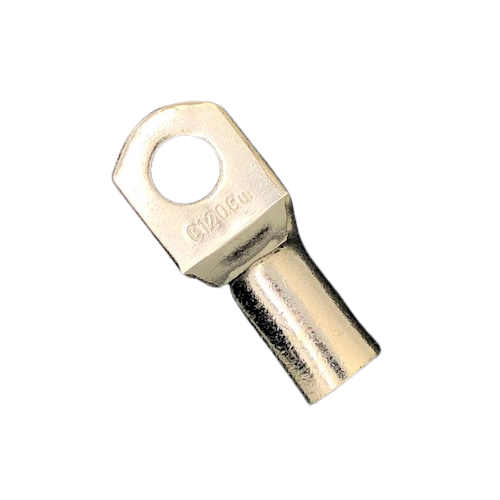

LV Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%.
Finishing: Tin-plated min 3-microns
Compliant to Malaysia Standard MS 1540. Customization available.
Available size: 1.5 to 1000mm2
Approved with TNB Certificate of Product Acceptance (SGP).

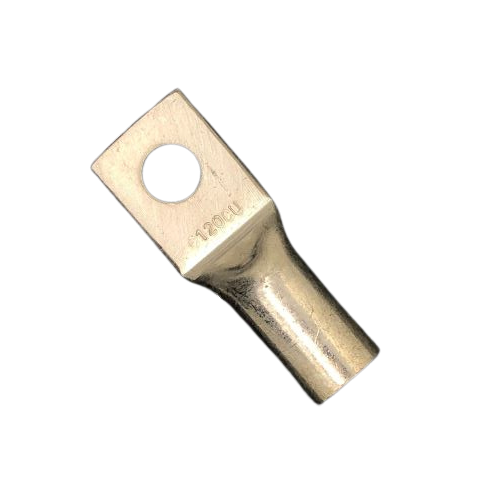

MV Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Corona relief taper-end for application up to 33kV.
Available size: 16 to 630mm2
Copper tube material and thickness compliant to MS 1540.

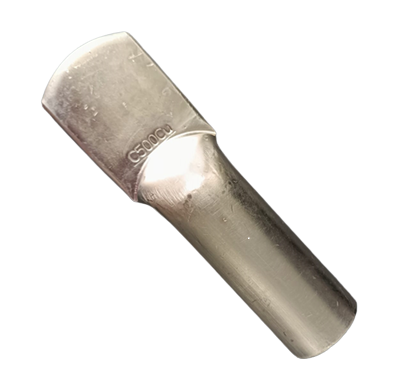

Outdoor Cable Lugs
High conductivity copper: min 99% I.AC.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Solder-sealed palm to prevent ingress of water or oil. Suitable for LV and MV applications.
Available size: 1.5 to 1000mm2

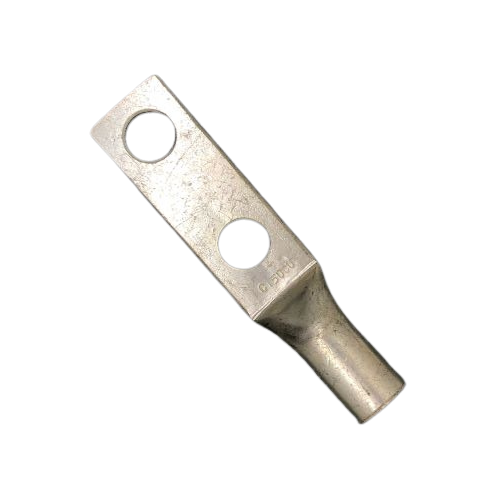

Two-hole Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Corona relief taper-end for application up to 33 kV.
Available size: 16 to 630mm2
Four-hole and other customization also available.

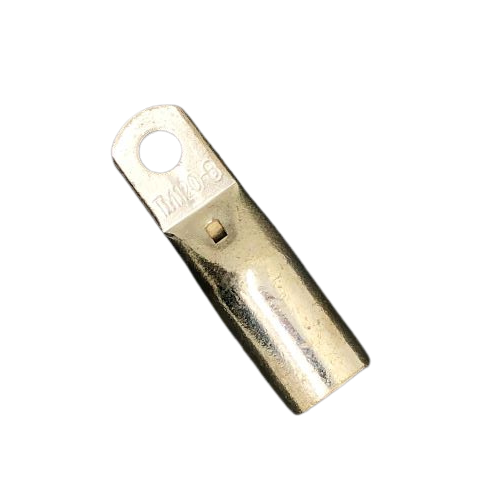

MCCB Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Suitable for all types of MCCB end termination.
Available size: 16 to 185mm2

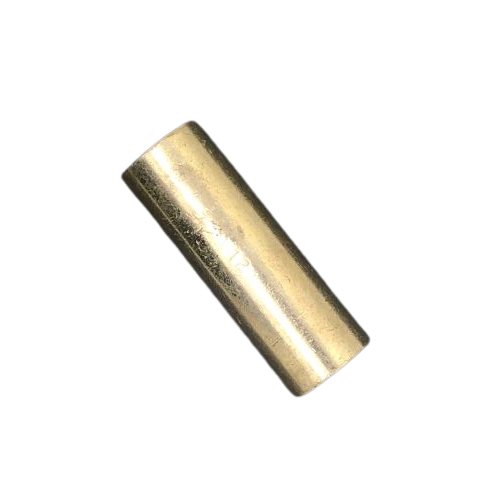

LV Cable Links
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%.
Finishing: Tin-plated min 3-microns
Compliant to Malaysia Standard MS 1779.
Available size: 1.5 to 1000mm2
Customization available.

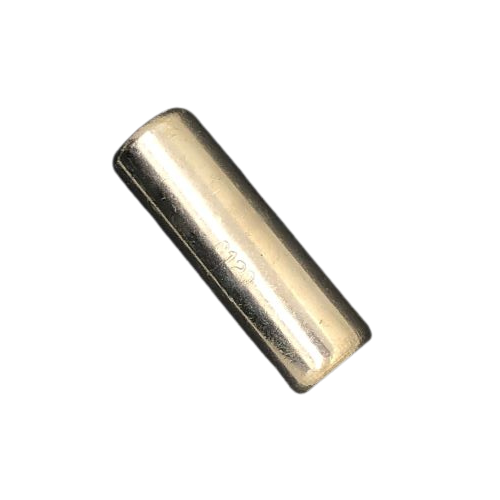

MV Cable Links
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Corona relief taper-end for application up to 33 kV.
Compliant to Malaysia Standard MS 1779.
Available size: 50 to 1000mm2

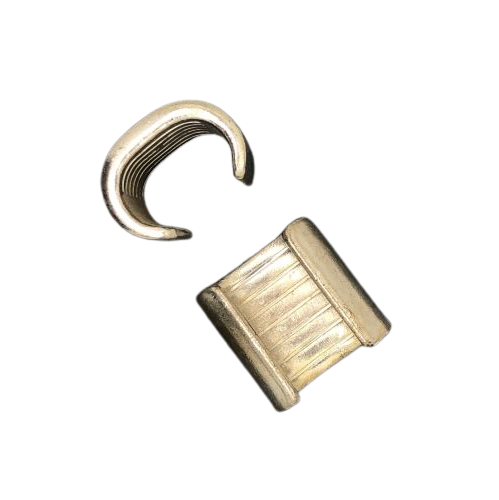

‘C’ Type Connector
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Used to branch our Copper conductors. Serrated to provide good mechanical grip. Chamfered-edge designed to protect the conductors.
Range: 27-44, 45-60, 61-76, 77-98, 99-122, 123-154, 155-190, 191-240, 241-288, 289-365 and 366-450mm2
LV Cable Lugs (Special Sizes)
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Compliant to Malaysia Standard MS 1540.
Customization available.
Available size: 2.5 to 630mm2
Approved with TNB Certificate of Product Acceptance (SGP).
Outdoor Long Barrel Cable Lug (Solder Sealed)
High conductivity copper: 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Copper tube compliant to Malaysia Standard MS 1540
Customization available. Specially designed for outdoor terminations.
Available size: 500 to 630mm2

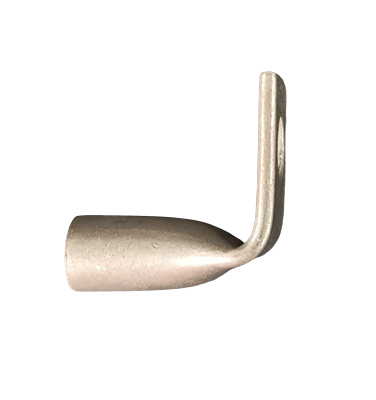

90 Degree Cable Lug
High conductivity copper: 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Copper tube compliant to Malaysia Standard MS1540. Customization available.
Use for Copper Conductor. Crimp Type for Hexagon and Indent Die.
Available size: 16 to 630mm2

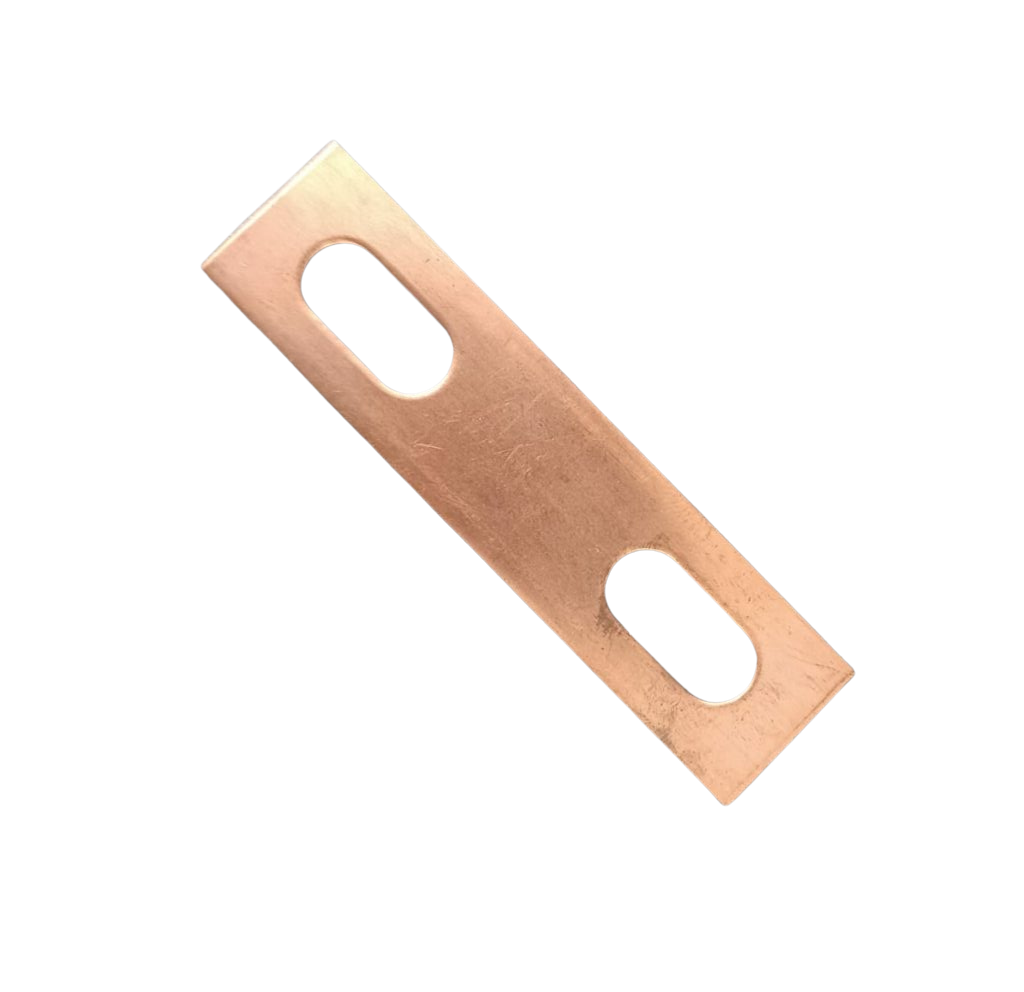

Copper Trunking Earth Link
Copper purity: ETP min 99.9%
Suitable for connecting to ground earth by installer.
Aluminium Connectors
Aluminium Cable Lugs
Aluminium purity: 99.5%
Made from aluminium tube for terminating aluminium conductors.
All lugs are pre-filled with jointing compound, plugged and individually labeled.
Suitable for hexagon-crimping and indentation-die.
Available size: 16 to 1000mm2

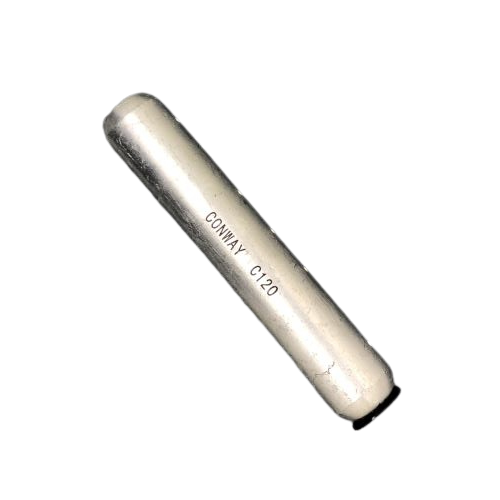

Aluminium Ferrules
Made from aluminium tube for joining aluminium conductors. Pre-filled with jointing compound, plugged and labeled.
Suitable for hexagon-crimping and indentation-die.
Available size: 25 to 630mm2
Approved with TNB Certificate of Product Acceptance (SGP).

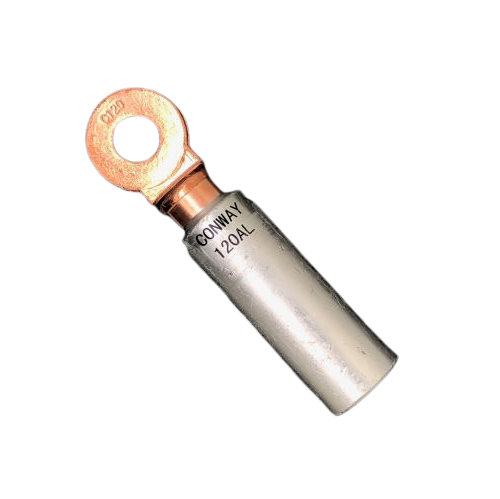

Bi-metal Lugs
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Made from solid aluminium and copper, friction welded.
Pre-filled with jointing compound, plugged and individually labeled.
Tested to IEC61238.
Available size: 16 to 1000mm2
Approved with TNB Certificate of Product Acceptance (SGP)

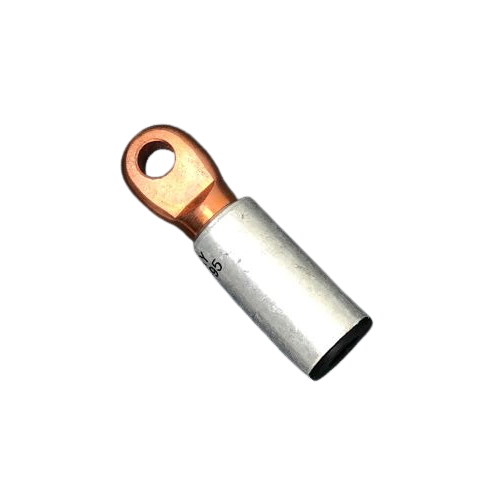

MCCB Bi-metal Lugs
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Specially designed for termination of aluminium conductor into MCCB. Made from solid aluminium and copper, friction welded. Pre-filled with jointing compound, plugged and individually labeled.
Available size: 10 to 120mm2

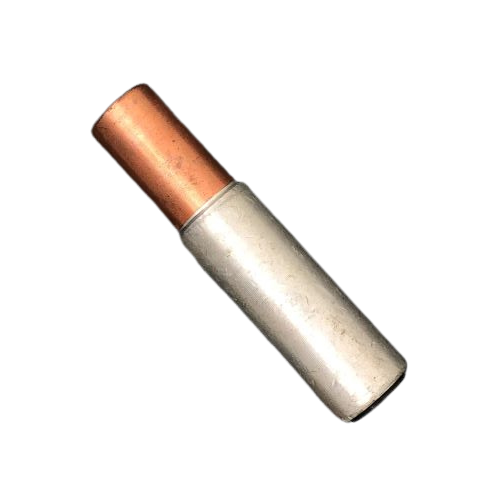

Bi-metal Links
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Made from solid aluminium and copper, friction welded.
Pre-filled with jointing compound, plugged and individually labeled.
Good for transition joint between copper and aluminium conductors.
Available size: Various

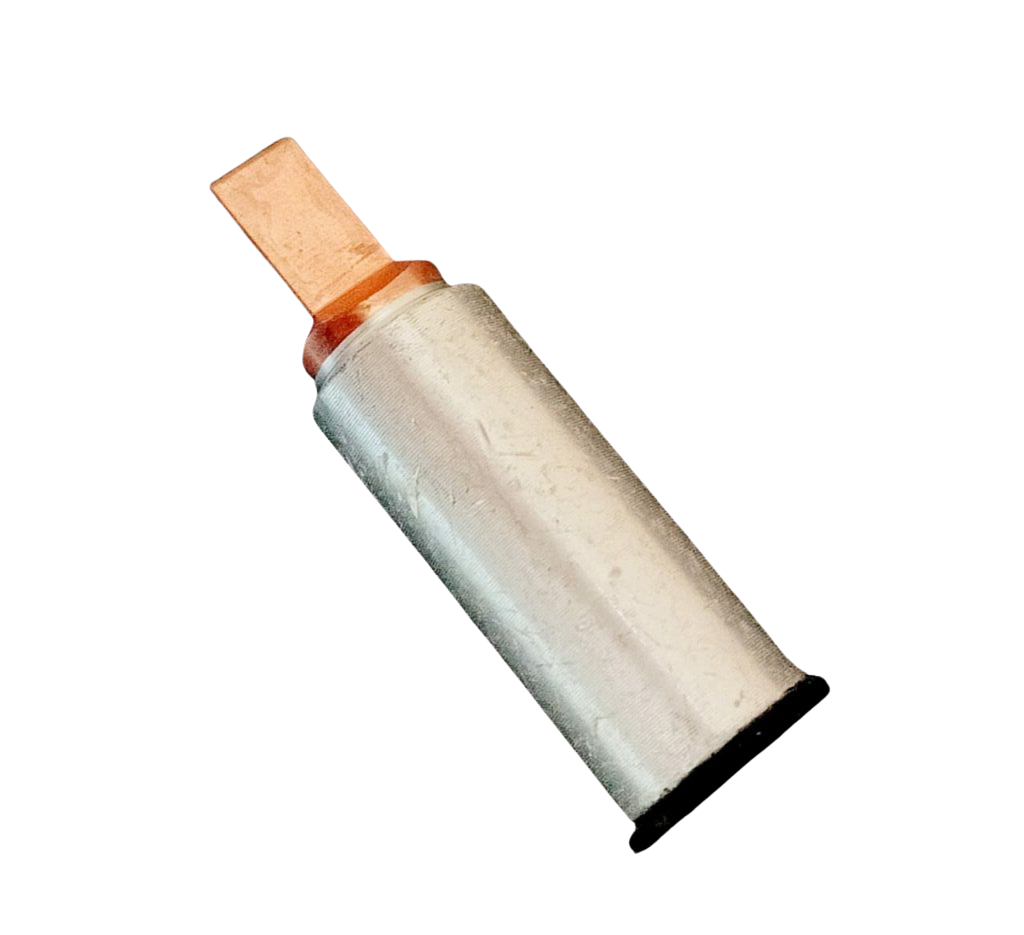

Bi-metal Flat Pin
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Specially designed for terminating cables to circuit breakers.
Made from solid aluminium and copper, friction welded.
Pre-filled with jointing compound and plugged.
For LV applications only.
Available size: 16 to 50mm2
Bi-metal Plate
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Suitable for copper to aluminium busbar connections in switchboards, distribution panels, transformer terminals, electrical substations, renewable energy systems, cable jointing applications and earthing systems.
Customisation available.
Available size: 2000mm (L) x 500mm (W)

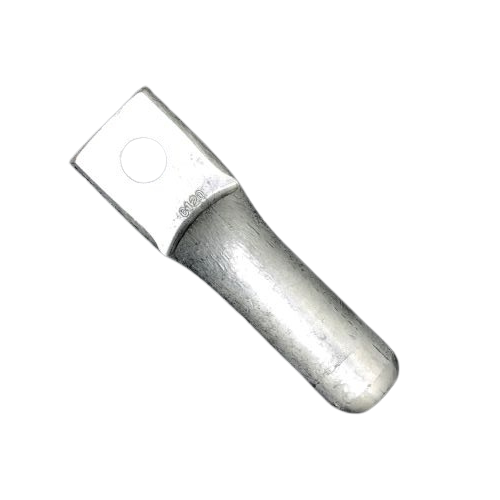

Solid Type Aluminium Cable Lug
Aluminium purity: 99.5%
Made of Solid Aluminium Rod.
All lugs are pre-filled with jointing compound, plugged and individual labeled.
Suitable for crimp type for hexagon and indent die.
Available for customisation.
Available size: 70mm to 1000mm2
Mechanical Connectors

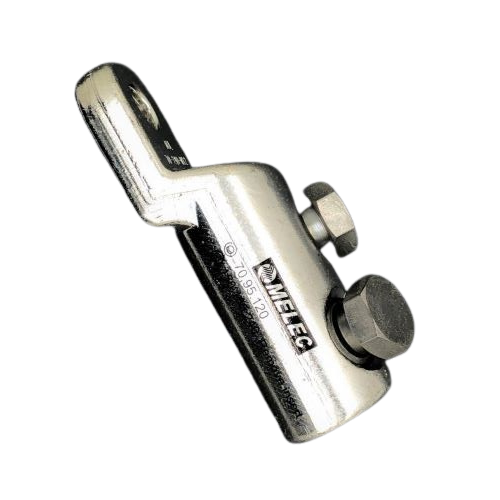

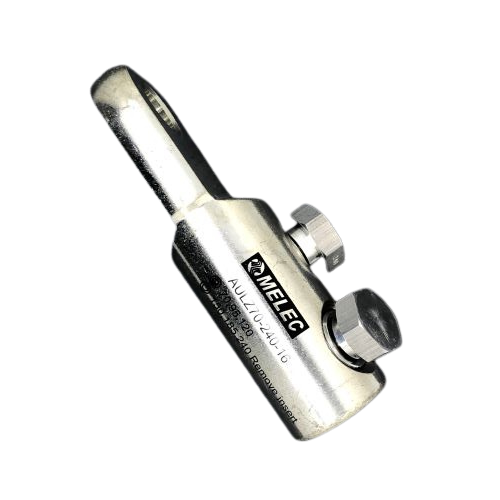

MELEC Mechanical Lug – Offset Palm
Made from high strength aluminium alloy.
Does not require crimping tools. Bolts are torque-controlled to ensure a clean shear-off.
Suitable for LV and MV application.
Conductor size range: 25 to 630mm2
Approved with TNB Certificate of Product Acceptance (SGP).
MELEC Mechanical Lug – Centre Palm
Made from high strength aluminium alloy.
Does not require crimping tools.
Suitable for T-connection termination for electrical equipment in MV.
Conductor size range: 25 to 400mm2
Approved with TNB Certificate of Product Acceptance (SGP).

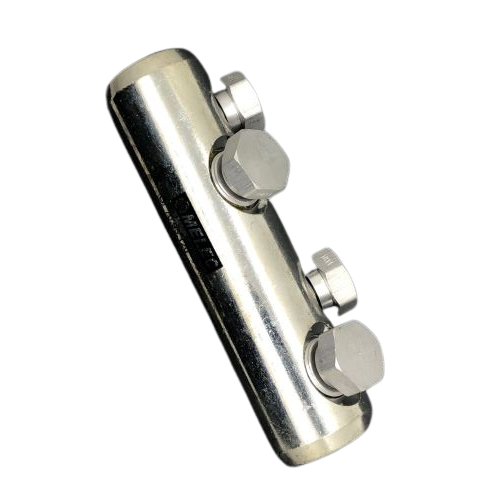

MELEC Mechanical Aluminium Ferrule
Made from high strength aluminium alloy.
Does not require crimping tools.
Suitable for LV and MV application.
Can be used as transition joints.
Conductor size range: 25 to 630mm2
Approved with TNB Certificate of Product Acceptance (SGP).
