Copper Connectors
LV Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%.
Finishing: Tin-plated min 3-microns
Compliant to Malaysia Standard MS 1540. Customization available.
Available size: 1.5 to 1000mm2
Approved with TNB Certificate of Product Acceptance (SGP).
MV Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Corona relief taper-end for application up to 33kV.
Available size: 16 to 630mm2
Copper tube material and thickness compliant to MS 1540.
Outdoor Cable Lugs
High conductivity copper: min 99% I.AC.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Solder-sealed palm to prevent ingress of water or oil. Suitable for LV and MV applications.
Available size: 1.5 to 1000mm2
Two-hole Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Corona relief taper-end for application up to 33 kV.
Available size: 16 to 630mm2
Four-hole and other customization also available.
MCCB Cable Lugs
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Suitable for all types of MCCB end termination.
Available size: 16 to 185mm2
LV Cable Links
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%.
Finishing: Tin-plated min 3-microns
Compliant to Malaysia Standard MS 1779.
Available size: 1.5 to 1000mm2
Customization available.
MV Cable Links
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Corona relief taper-end for application up to 33 kV.
Compliant to Malaysia Standard MS 1779.
Available size: 50 to 1000mm2
‘C’ Type Connector
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finishing: Tin-plated min 3-microns
Used to branch our Copper conductors. Serrated to provide good mechanical grip. Chamfered-edge designed to protect the conductors.
Range: 27-44, 45-60, 61-76, 77-98, 99-122, 123-154, 155-190, 191-240, 241-288, 289-365 and 366-450mm2
LV Cable Lugs (Special Sizes)
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Copper tube compliant to Malaysia Standard MS 1540.
Customization available.
Available size: 2.5 to 630mm2
Approved with TNB Certificate of Product Acceptance (SGP).
MV Cable Lugs (Special Sizes)
High conductivity copper: min 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Copper tube material and thickness compliant to MS 1540.
Corona relief taper-end for application up to 33kV.
Available size: 16 to 630mm2

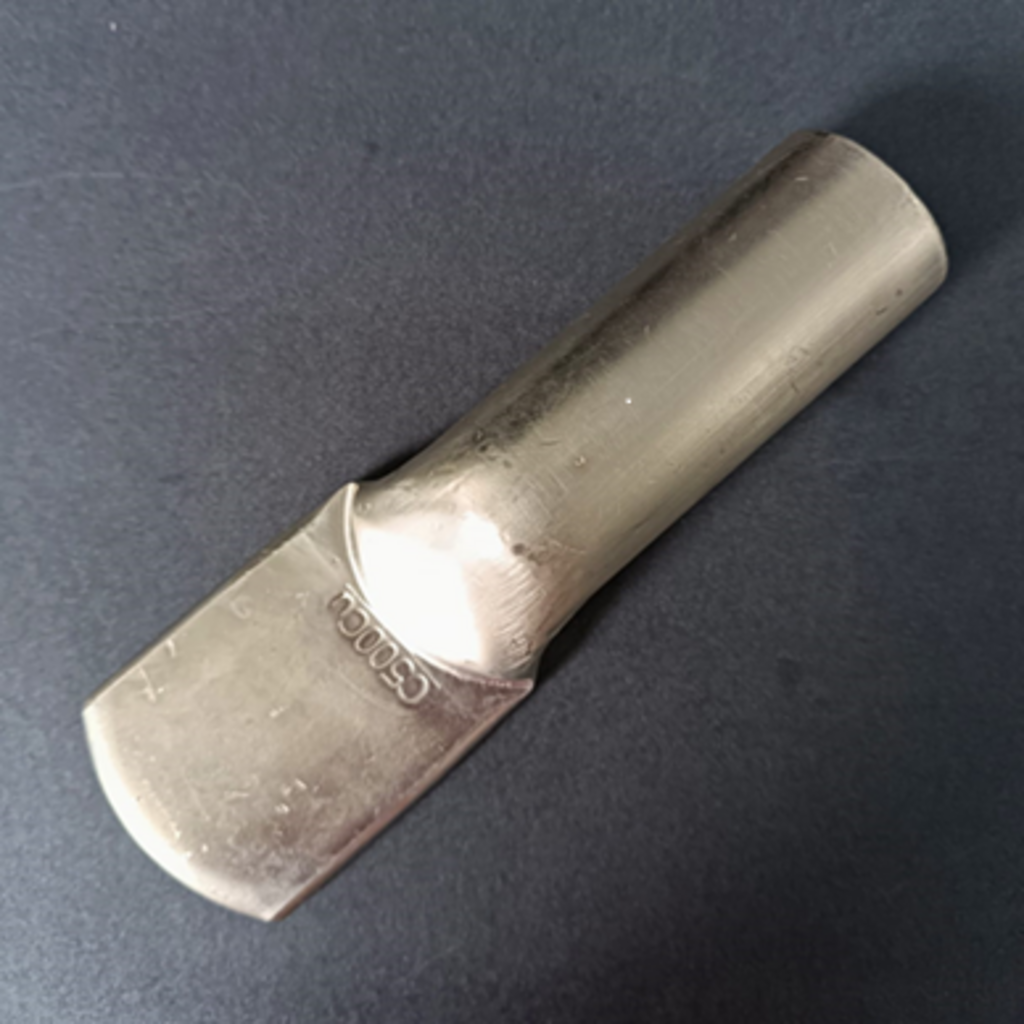

Outdoor Long Barrel Cable Lug (Solder Sealed)
High conductivity copper: 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Copper tube compliant to Malaysia Standard MS 1540
Customization available. Specially designed for outdoor terminations.
Available size: 500 to 630mm2

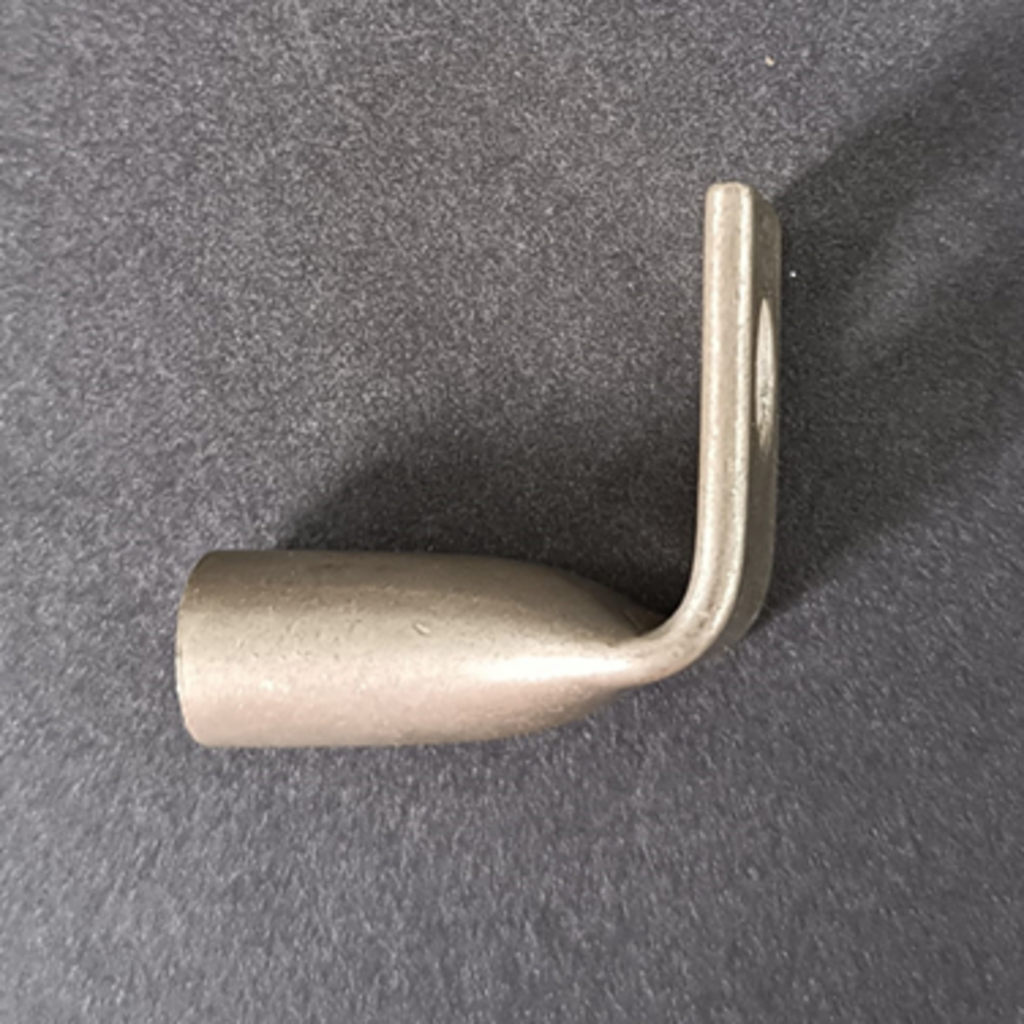

90 Degree Cable Lug
High conductivity copper: 99% I.A.C.S.
Copper purity: ETP min 99.9%
Finish: Tin-plated min 3-microns
Copper tube compliant to Malaysia Standard MS1540. Customization available.
Use for Copper Conductor. Crimp Type for Hexagon and Indent Die.
Available size: 16 to 630mm2
Copper Trunking Earth Link
Copper purity: ETP min 99.9%
Suitable for connecting to ground earth by installer.
