Fuse Links
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FE01 (A) (F06)
Current Rating Available: 2, 4, 6, 10, 16, 20, 25, 32A
Breaking Capacity: 100kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC 60269
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FE02 (B) (F21)
Current Rating Available: 2, 4, 6, 10, 16, 20, 25, 32A
Breaking Capacity 100kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC 60269.
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FG01 (B)
Current Rating Available: 16, 20, 32A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC 60269.
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FK01 (B) (K07)
Current Rating Available: 40, 50, 63A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC 60269.
KEMA tested
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FL01 (C) (L09)
Current Rating Available: 80, 100A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC 60269.
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FL03 (B) (L14)
Current Rating Available: 80, 100A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC60269.
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FM01 (C) (M09)
Current Rating Available: 125, 160, 200A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC 60869.
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FN01 (C) (N09)
Current Rating Available: 250, 315, 400A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988,
Complaint with IEC 60269.
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FK-FRH (D) (KR71)
Current Rating Available: 15, 30, 50, 60A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988,
Complaint with IEC 60269.
KEMA tested.
FUSEGEAR ELECTRIC HRC FUSE LINK
Type FL-FRH (D) (LR71)
Current Rating Available: 30, 60, 80, 100A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Complaint with IEC 60269.
KEMA tested.
FUSEGEAR ELECTRIC 'J' TYPE FUSE LINK
Type FMJ – U Tag
Current Rating Available: 40, 60, 80, 100, 125, 160, 200, 250A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Complaint with IEC 60269.
KEMA tested.
Approved with TNB Certificate of Product Acceptance (SGP).
FUSEGEAR ELECTRIC 'J' TYPE FUSE LINK
Type FNJ – U Tag
Current Rating Available: 315, 400A
Breaking Capacity 120kA at 500V
B.S. 88: Part 5: 1988
Compliant with IEC 60269
KEMA tested
CHFE NH FUSE LINK
Type NH000
Rated Voltage: 500V
Rated Breaking Capacity: 120kA
Double indicator.
Complaint with IEC 60269.
Approved with TNB Certificate of Product Acceptance (SGP).
CHFE NH FUSE LINK
Type NH00
Rated Voltage: 500V
Rated Breaking Capacity: 120kA
Double indicator.
Complaint with IEC 60269.
Approved with TNB Certificate of Product Acceptance (SGP).
CHFE NH FUSE LINK
Type NH01
Rated Voltage: 500V
Rated Breaking Capacity: 120kA
Double indicator.
Complaint with IEC 60269.
Approved with TNB Certificate of Product Acceptance (SGP).
CHFE NH FUSE LINK
Type NH02
Rated Voltage: 500V
Rated Breaking Capacity: 120kA
Double indicator.
Complaint with IEC 60269.
Approved with TNB Certificate of Product Acceptance (SGP).

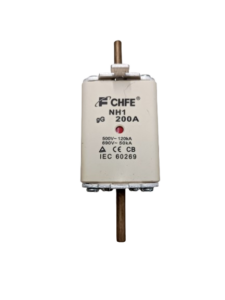

CHFE NH FUSE LINK
Type NH1
Rated Voltage: 500V
Rated Breaking Capacity: 120kA
Double indicator.
Complaint with IEC 60269.
Approved with TNB Certificate of Product Acceptance (SGP).
