Aluminium Connectors
Aluminium Cable Lugs
Aluminium purity: 99.5%
Made from aluminium tube for terminating aluminium conductors.
All lugs are pre-filled with jointing compound, plugged and individually labeled.
Suitable for hexagon-crimping and indentation-die.
Available size: 16 to 1000mm2
Aluminium Ferrules
Made from aluminium tube for joining aluminium conductors. Pre-filled with jointing compound, plugged and labeled.
Suitable for hexagon-crimping and indentation-die.
Available size: 25 to 630mm2
Approved with TNB Certificate of Product Acceptance (SGP).
Bi-metal Lugs
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Made from solid aluminium and copper, friction welded.
Pre-filled with jointing compound, plugged and individually labeled.
Tested to IEC61238.
Available size: 16 to 1000mm2
Approved with TNB Certificate of Product Acceptance (SGP)

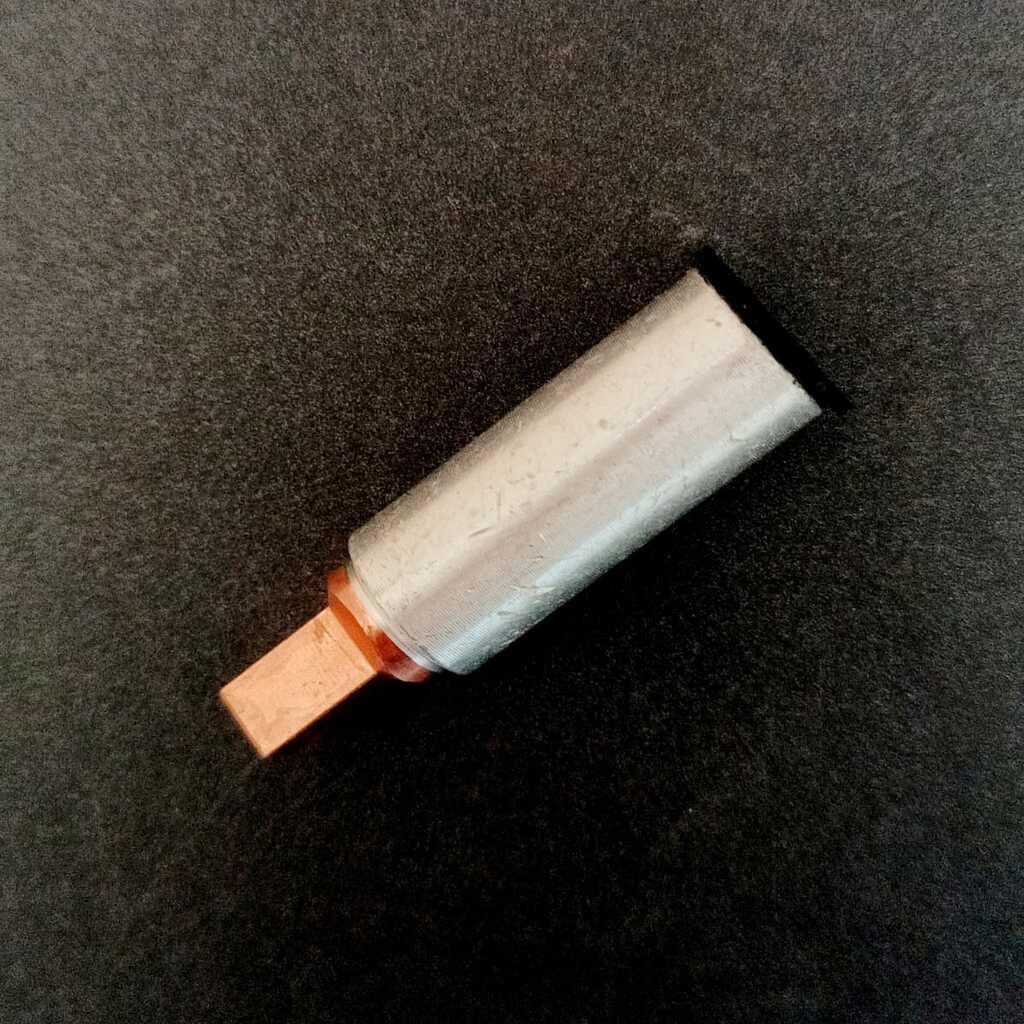

MCCB Bi-metal Lugs
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Specially designed for termination of aluminium conductor into MCCB. Made from solid aluminium and copper, friction welded. Pre-filled with jointing compound, plugged and individually labeled.
Available size: 10 to 120mm2
Bi-metal Links
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Made from solid aluminium and copper, friction welded.
Pre-filled with jointing compound, plugged and individually labeled.
Good for transition joint between copper and aluminium conductors.
Available size: Various
Bi-metal Flat Pin
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Specially designed for terminating cables to circuit breakers.
Made from solid aluminium and copper, friction welded.
Pre-filled with jointing compound and plugged.
For LV applications only.
Available size: 16 to 50mm2
Solid Type Aluminium Cable Lug
Aluminium purity: 99.5%
Made of Solid Aluminium Rod.
All lugs are pre-filled with jointing compound, plugged and individual labeled.
Suitable for crimp type for hexagon and indent die.
Available for customisation.
Available size: 70mm to 1000mm2

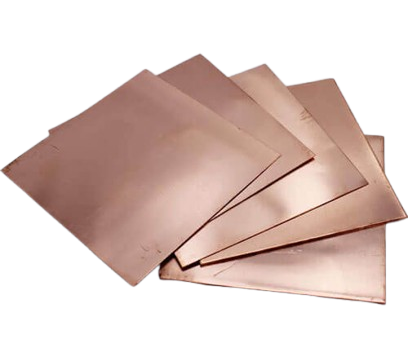

Bi-metal Plate
Copper purity: ETP min 99.9%
Aluminium purity: 99.5%
Suitable for copper to aluminium busbar connections in switchboards, distribution panels, transformer terminals, electrical substations, renewable energy systems, cable jointing applications and earthing systems.
Customisation available.
Available size: 2000mm (L) x 500mm (W)
