High-Performance Medium Voltage Connectivity Solutions
Chardon is a global leader in medium voltage separable connectors and epoxy bushings, delivering reliable and high-quality solutions for switchgear and transformer applications. Engineered for safety, durability, and ease of installation, Chardon’s products are designed to meet ANSI/IEEE and IEC standards, ensuring consistent and efficient power distribution in even the most demanding environments.
As an authorized distributor in Malaysia, CONWAY offers a comprehensive range of Chardon’s separable connectors, epoxy bushings, and related accessories—providing utilities and industries with proven solutions for secure and long-lasting electrical connections. With advanced insulation technology, precision engineering, and field-proven performance, Chardon products help enhance power system reliability and operational efficiency.

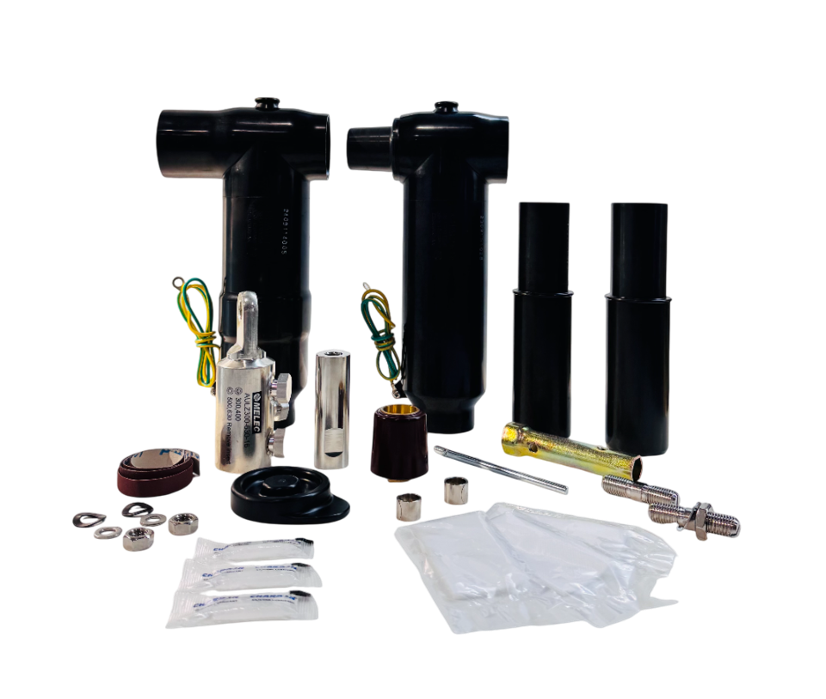

MV Screened Separable Connector
Suitable for indoor and outdoor use, and comply with EN 50180 and EN 50181. Compatible with copper and aluminum conductors up to 33kV, they include high-performance adapters for a wide range of cable sizes. Comply with EN 50180 and EN 50181 standards.
Interface C Voltage Test Rod
Designed for accurate cable fault location, phase checking, and cable testing.
Test Rod Type : VTR
Max. A.C. Test Voltage (50 Hz – 1min) : 36kV
Min. D.C. Test Voltage (8 x U₀ – 30min) : 96kV
Impulse Voltage (1.2 x 50 µs) : 95kV
33kV Deadbreak Insulated Cap
Suitable for both temporary and permanent applications. it can be properly grounded using the attached drain wire, ensuring a physical seal and reliable electrical insulation.
Max. Voltage Class (Um) : 33kV
AC 5 Minute Withstand : 81kV
Min. Corona Voltage Level : 30kV < 10pC
BIL and Full Wave Crest : 170kV
Cable Jumper
This cable jumper is prefabricated cable assemblies with separable connectors or terminations installed at both ends. The design meets the requirements of HD 629.1, IEC 60502-4, and EN 50181 standards.
Max. Voltage Class (Um) : 12/17kV, 24,kV, 36kV, 42kV
AC 5 Minute Withstand : 39kV, 57kV, 85.5kV, 93.5kV
Min. Corona Voltage Level : 15kV<3pC, 22kV<3pC, 33kV<3pC, 36kV< 3pC
BIL and Full Wave Crest (Impulse) : 95kV, 125kV, 194kV, 200kV
