CONWAY Tools

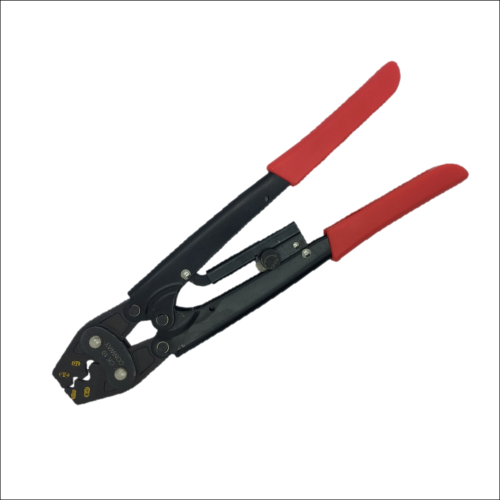

TCCK-10 Crimping Tool
A manual indent tool for crimping of cable connectors up to 10mm2.
Crimping Type : Indent
Crimping Range : 1.5mm2 to 10mm2
Full Length : 270mm
Weight : 430g
TCCP-120 Hydraulic Crimping Tool
A Hydraulic crimping tool for non-insulated Copper cable lugs and links up to 120mm2.
Crimping Type : Hexagon
Crimping Range : 16mm2 to 120mm2
Crimping Force : 60kN
Full Length : 420mm
Weight : 3.0kg
TCCP-300 Hydraulic Crimping Tool
A Hydraulic crimping tool for non-insulated Copper cable lugs and links up to 240mm2.
Crimping Type : Hexagon
Crimping Range : 16mm2 to 300mm2
Crimping Stroke : 16mm
Crimping Force : 80kN
Full Length : 500mm
Weight : 4.6kg

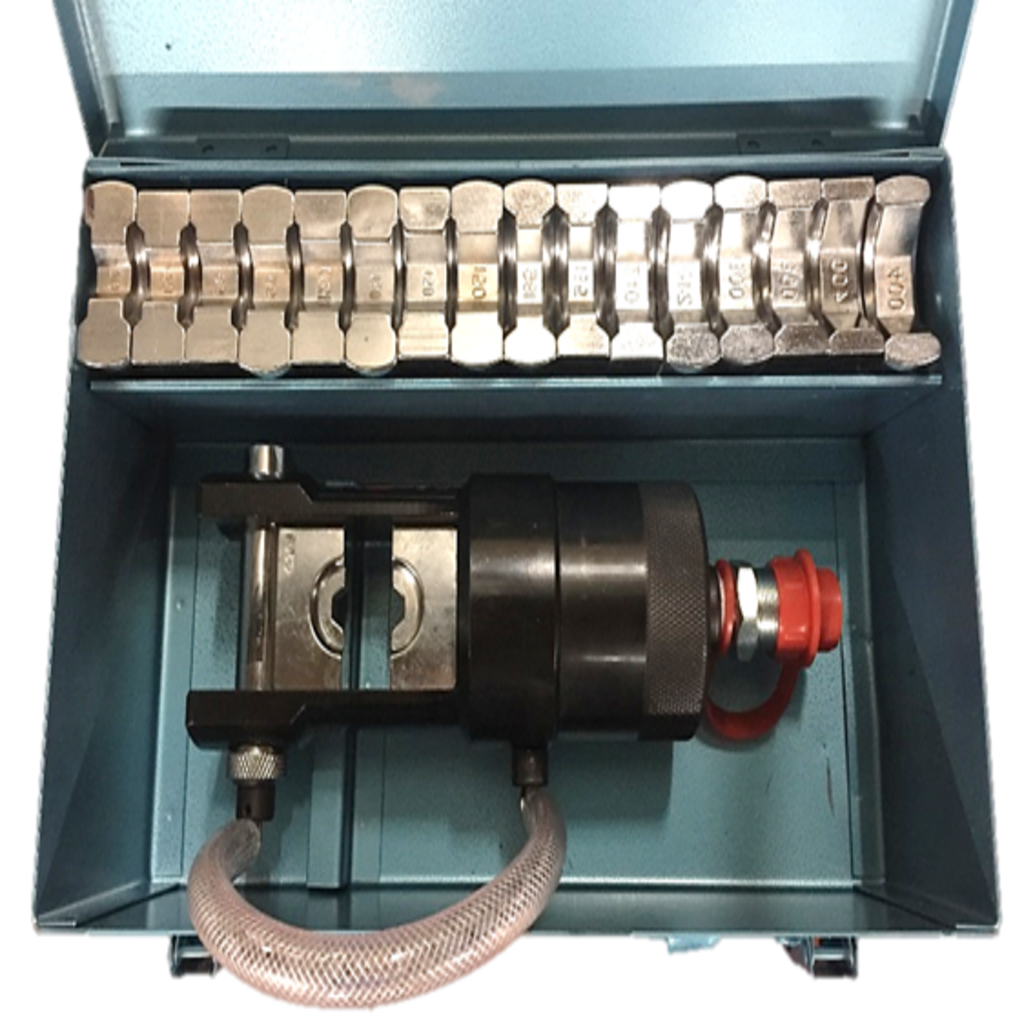

TCCP-400 Hydraulic Crimping Tool Set
A hydraulic operated crimping tool set that develops 13 tonnes crimp force, for up to 400mm2 Copper connectors.
Crimping Type : Hexagon
Crimping Range : 50mm2 to 400mm2
Crimping Stroke : 25mm
Crimping Force : 130kN
Weight : 4.0kg (Crimping Head)
TCCP-630 Hydraulic Crimping Tool Set
A hydraulic operated crimping tool set that develops 23 tonnes crimp force, for up to 630mm2 Copper connectors.
Crimping Type : Hexagon
Crimping Range : 185mm2 to 630mm2
Crimping Stroke : 38mm
Crimping Force : 230kN
Weight : 6.0kg (Crimping Head)
TCCP-1000 Hydraulic Crimping Tool
A hydraulic operated crimping head that develops 30 tonnes crimp force, for up to 1000mm2 Copper connectors.
Crimping Type : Hexagon
Crimping Range : 500mm2 to 1000mm2
Crimping Stroke : 30mm
Crimping Force : 300kN
Weight : 13.5kg (Crimping Head)
TCCP-400HAL & TCCP-400HP Hydraulic Crimping Tool Set
A hydraulic operated crimping tool set that develops 13 tonnes crimp force, for up to 240mm2 Aluminium connectors.
Crimping Type : Hexagon
Crimping Range : 16mm2 to 240mm2
Crimping Stroke : 25mm
Crimping Force : 130kN
Weight : 4.0kg (Crimping Head)
TCCP-1000 & TCPM-1000 Hydraulic Crimping Tool
A hydraulic operated crimping head that develops 30 tonnes crimp force, for up to 1000mm2 Aluminium connectors.
Crimping Type : Hexagon
Crimping Range : 300mm2 to 1000mm2
Crimping Stroke : 30mm
Crimping Force : 300kN
Weight : 13.5kg (Crimping Head)
TCCH-240 Hydraulic Indent Tool
Deep indent volume-control dies for Aluminium Ferrules, Bi-metal Lugs and Rounding Dies.
Compliant to TNB Specification.
Crimping Type : Deep Indent (Controlled Volume)
Crimping Range : 25mm2 to 240mm2 (Aluminium Conductor)
Crimping Force : 120kN
Weight : 4.3kg (Without the dies)
Rated Operating Pressure :700kg/cm3 (10,000 P.S.I)
TCCH-630 Hydraulic Indent Tool
Deep indent volume-control dies for Aluminium Ferrules, Bi-metal Lugs and Rounding Dies.
Compliant to TNB Specification.
Crimping Type : Deep Indent (Controlled Volume)
Crimping Range : 300mm2 to 630mm2 (Aluminium Conductor)
Crimping Force : 200kN
Weight : 6.0kg (Without the dies)
Rated Operating Pressure :700kg/cm3 (10,000 P.S.I)
TCBC-150 Hydraulic Bar Cutter
Input Pressure : Max. 700bar or 10,000psi
Max. Width : 150mm
Max. Thickness : 10mm for Copper Bar
6mm for Mild Steel Plate
Weight : 26kg
TCBB-150 Hydraulic Bar Bender
Input Pressure : Max. 700bar or 10,000psi
Max. Width : 150mm
Max. Thickness : 10mm for Copper Bar
Weight : 23kg
TCCH-60 Hydraulic Hole Puncher
Input Pressure : Max. 700bar or 10,000psi
Output Force : 20 tons
Max. Thickness : 10mm for Copper Bar
6mm for Mild Steel Plate
Dies Size : 10.5mm, 13.5mm, 17.5mm and 20.5mm
Weight : 16kg
TOPT-PP-70 Hydraulic Hole Puncher (Pre-order)
Output Force : 30 tons
Max. Thickness : 10mm for metal plate
Punch Dies Size : 10.5mm, 13.5mm, 17.5mm and 20.5mm
Weight : 13kg
TCXS-630 Hydraulic Cable Cutter
Cutting of Copper & Aluminium PVC Cable
Input Pressure : Max. 700bar or 10,000psi
Opening Jaw : 45mm
Cutting Range : Up to 45mm OD
Total Length : 300mm
Weight : 5kg
TCHC-52 Hydraulic Hole Cutter
Input Pressure : Max. 700bar or 10,000psi
Output Force : 8 ton
Maximum Thickness : 2.5mm for Mild Steel Plate
Hole Size : 16.5 to 50.5mm
Weight : 4.0kg (Hole Cutter with a standard die)
TCHC-115 Hydraulic Hole Cutter
Input Pressure : Max.700bar or 10,000psi
Output Force : 12 ton
Max. Thickness : 2.5mm for Mild Steel Plate
Hole Size : 21.8 to 115.5mm
TCCP-630HP Hydraulic Hand Pump
Max. Pressure : 700bar or 10,000psi
Weight : 8.5kg

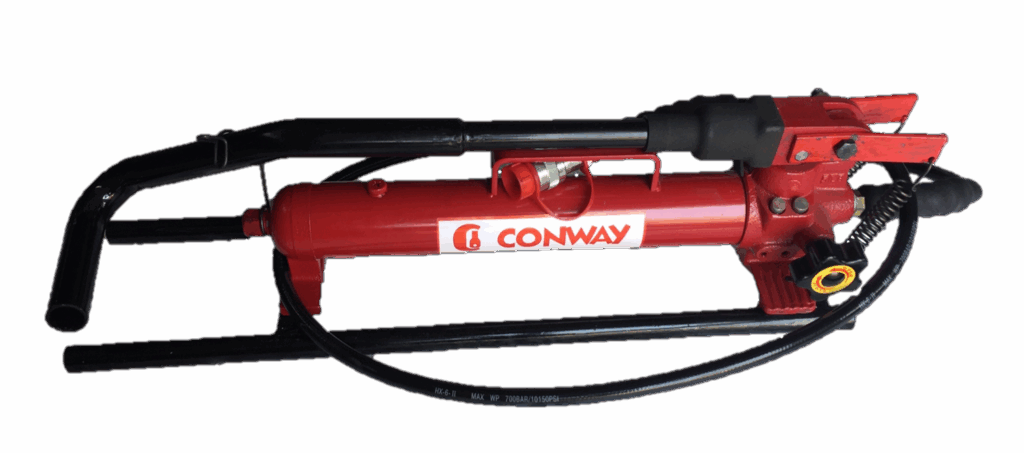

TCCP-630FP Hydraulic Foot Pump
Max. Pressure : 700bar or 10,000psi
Weight : 10.4kg
TCCP-400HP Hydraulic Hand Pump
Max. Pressure : 700bar or 10,000psi
Weight : 6kg
Length : 530mm
TCPM-1000 Electric Pump (Single Acting)
Max. Pressure : 700bar or 10,000psi
Reservoir Capacity : 2.6L
Oil Speed : 500c.c/Min. at Max. Pressure 700kgF/cm2
2750c.c/ Min. at Max. Pressure 20kgF/cm2
Weight : 21kg
TCPM-3001 Electric Pump (Double Acting)
Max. Pressure : 700bar or 10,000psi
Reservoir Capacity : 3.3L
Oil Speed : 500c.c/Min. at Max. Pressure 700kgF/cm2
2750c.c/ Min. at Max. Pressure 20kgF/cm2
Weight : 27kg

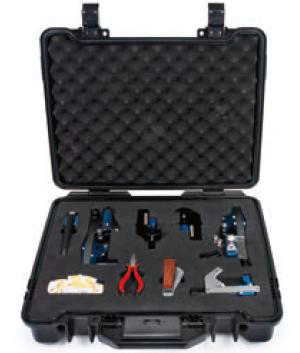

TBET-FL-135 Cable Preparation Set
10-35kV Portable Cable Preparation Set is used for preparing most power cable for splicing or terminating.

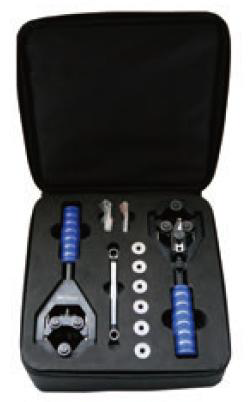

TBET-FL-210 Cable Preparation Set (Pre-order)
10kV Economical Portable Cable Preparation set is used for preparing most power cable for spicing or terminating.

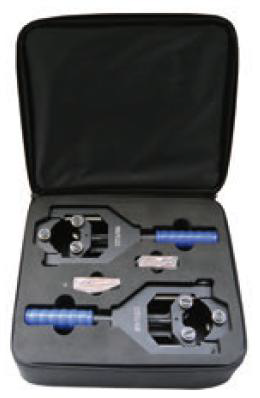

TBET-FL-235 Cable Preparation Set (Pre-order)
35kV Economical Portable Cable Preparation set is used for preparing most power cable for spicing or terminating.
TBET-HC-50 Hydraulic Cable Cutter Tool
Cutting of Copper & Aluminium PVC Cable.
Output Force : 6 tons
Input Pressure : Max. 700bar or 10,000psi
Cutting Range : Up to 50mm OD
Weight : 3.9kg
TBET-J-52 Ratchet Cable Cutter
Cutting of Copper & Aluminium Core Armoured Cable
Cutting range : 500mm2
Weight : 3.1kg
TCHP-70A Hydraulic Crimping Tool
This hand operated hydraulic crimping tool provides up to 6kN crimp force.
It comes with two sets of dies ready to crimp copper braid and welding cable application.
