ELECTRICIAN TOOLS
Comprehensive range of Electrician Tools, including crimping, cutting, punching, and bending tools. Our solutions are available in manual and hydraulic electrical and battery-powered types to meet the needs of modern electrical installations and maintenance. Designed for precision, efficiency, and durability, our tools deliver reliable performance, making them ideal for professionals working in diverse environments and applications.
CONWAY Tools
TCCK-10 Crimping Tool
A manual indent tool for crimping of cable connectors up to 10mm2.
Crimping Type : Indent
Crimping Range : 1.5mm2 to 10mm2
Full Length : 270mm
Weight : 430g

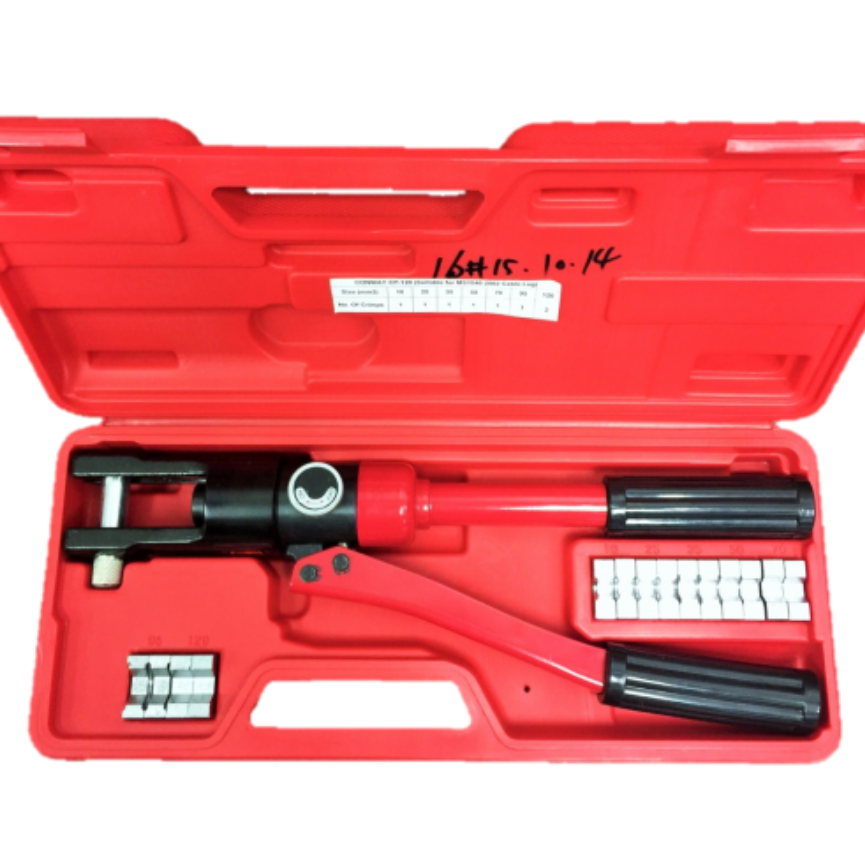

TCCP-120 Hydraulic Crimping Tool
A Hydraulic crimping tool for non-insulated Copper cable lugs and links up to 120mm2.
Crimping Type : Hexagon
Crimping Range : 16mm2 to 120mm2
Crimping Force : 60kN
Full Length : 420mm
Weight : 3.0kg

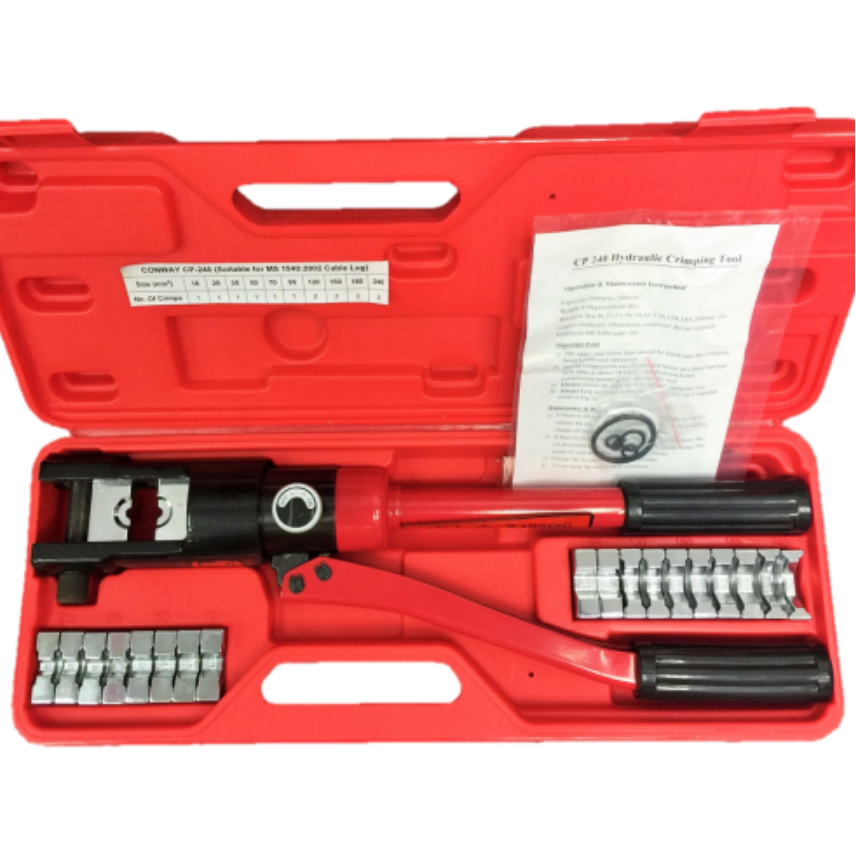

TCCP-300 Hydraulic Crimping Tool
A Hydraulic crimping tool for non-insulated Copper cable lugs and links up to 240mm2.
Crimping Type : Hexagon
Crimping Range : 16mm2 to 300mm2
Crimping Stroke : 16mm
Crimping Force : 80kN
Full Length : 500mm
Weight : 4.6kg

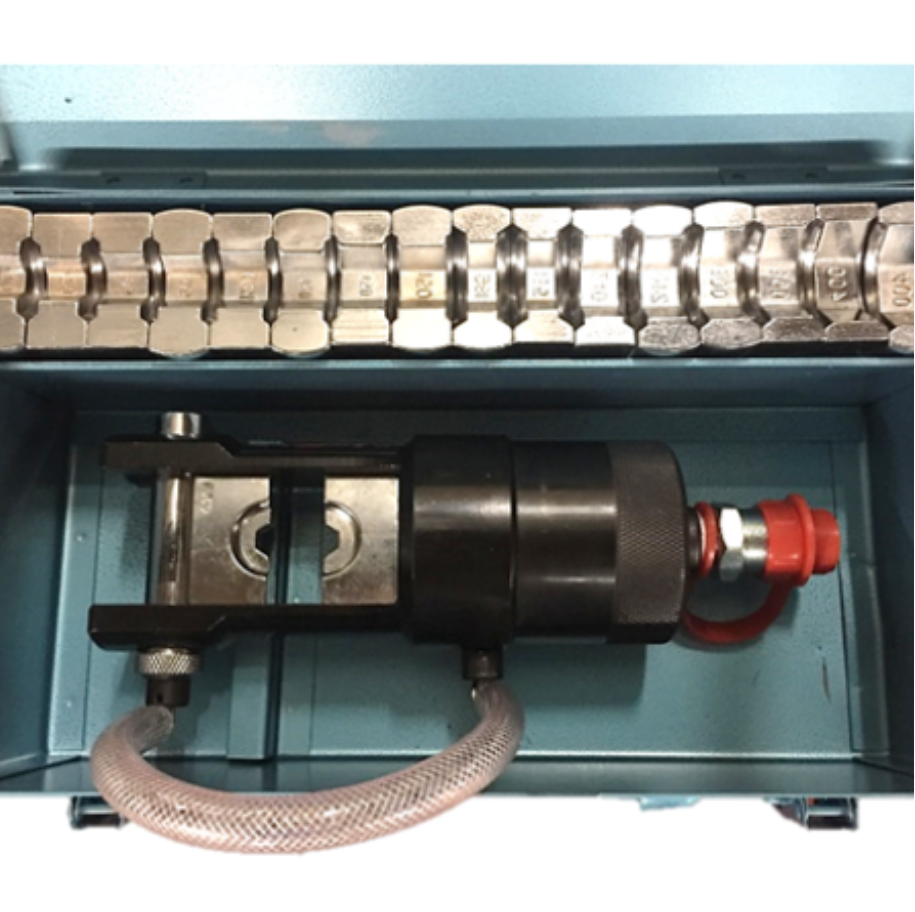

TCCP-400 Hydraulic Crimping Tool Set
A hydraulic operated crimping tool set that develops 13 tonnes crimp force, for up to 400mm2 Copper connectors.
Crimping Type : Hexagon
Crimping Range : 50mm2 to 400mm2
Crimping Stroke : 25mm
Crimping Force : 130kN
Weight : 4.0kg (Crimping Head)

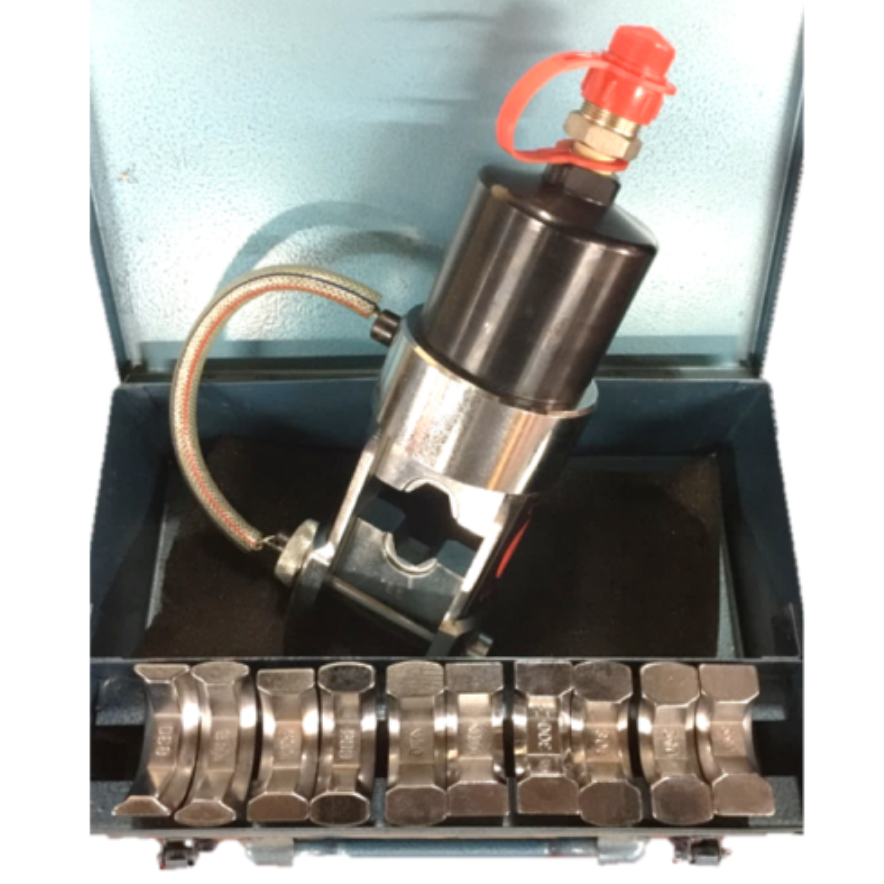

TCCP-630 Hydraulic Crimping Tool Set
A hydraulic operated crimping tool set that develops 23 tonnes crimp force, for up to 630mm2 Copper connectors.
Crimping Type : Hexagon
Crimping Range : 185mm2 to 630mm2
Crimping Stroke : 38mm
Crimping Force : 230kN
Weight : 6.0kg (Crimping Head)

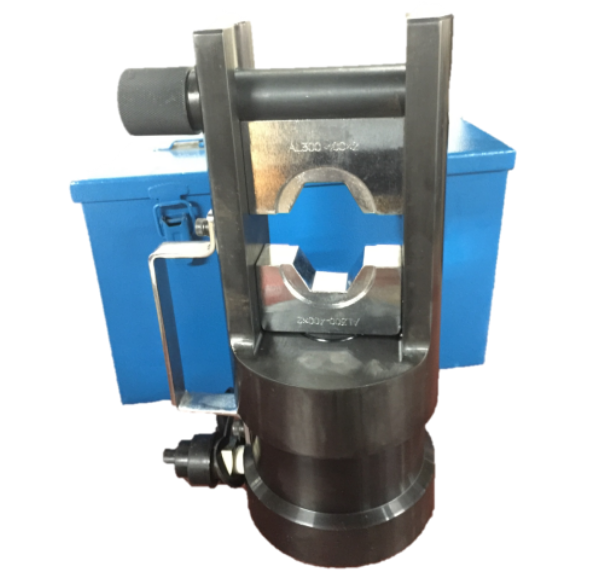

TCCP-1000 Hydraulic Crimping Tool
A hydraulic operated crimping head that develops 30 tonnes crimp force, for up to 1000mm2 Copper connectors.
Crimping Type : Hexagon
Crimping Range : 500mm2 to 1000mm2
Crimping Stroke : 30mm
Crimping Force : 300kN
Weight : 13.5kg (Crimping Head)

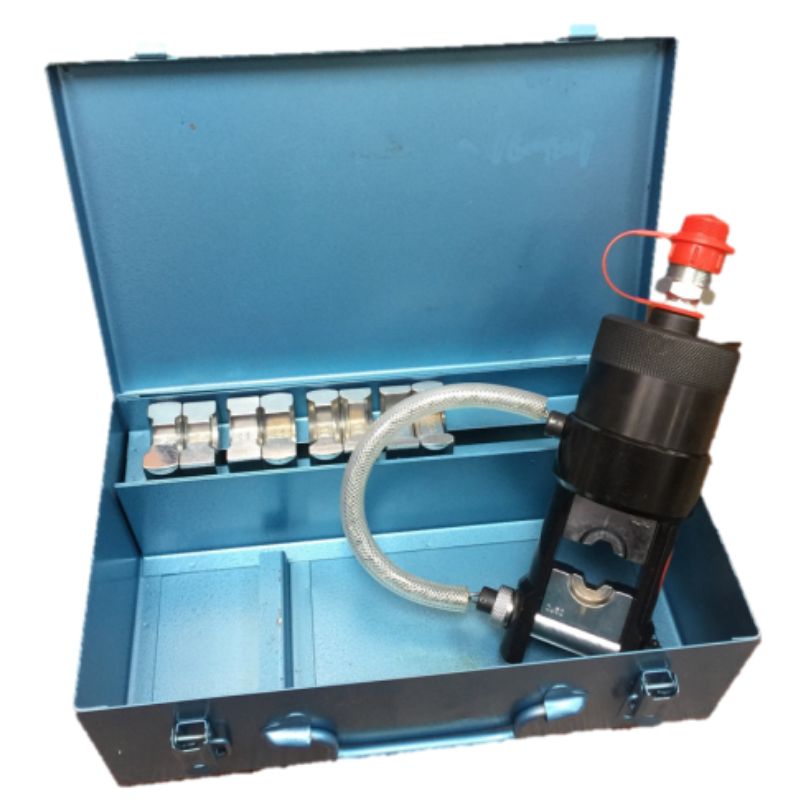

TCCP-400HAL & TCCP-400HP Hydraulic Crimping Tool Set
A hydraulic operated crimping tool set that develops 13 tonnes crimp force, for up to 240mm2 Aluminium connectors.
Crimping Type : Hexagon
Crimping Range : 16mm2 to 240mm2
Crimping Stroke : 25mm
Crimping Force : 130kN
Weight : 4.0kg (Crimping Head)
TCCP-1000 & TCPM-1000 Hydraulic Crimping Tool
A hydraulic operated crimping head that develops 30 tonnes crimp force, for up to 1000mm2 Aluminium connectors.
Crimping Type : Hexagon
Crimping Range : 300mm2 to 1000mm2
Crimping Stroke : 30mm
Crimping Force : 300kN
Weight : 13.5kg (Crimping Head)

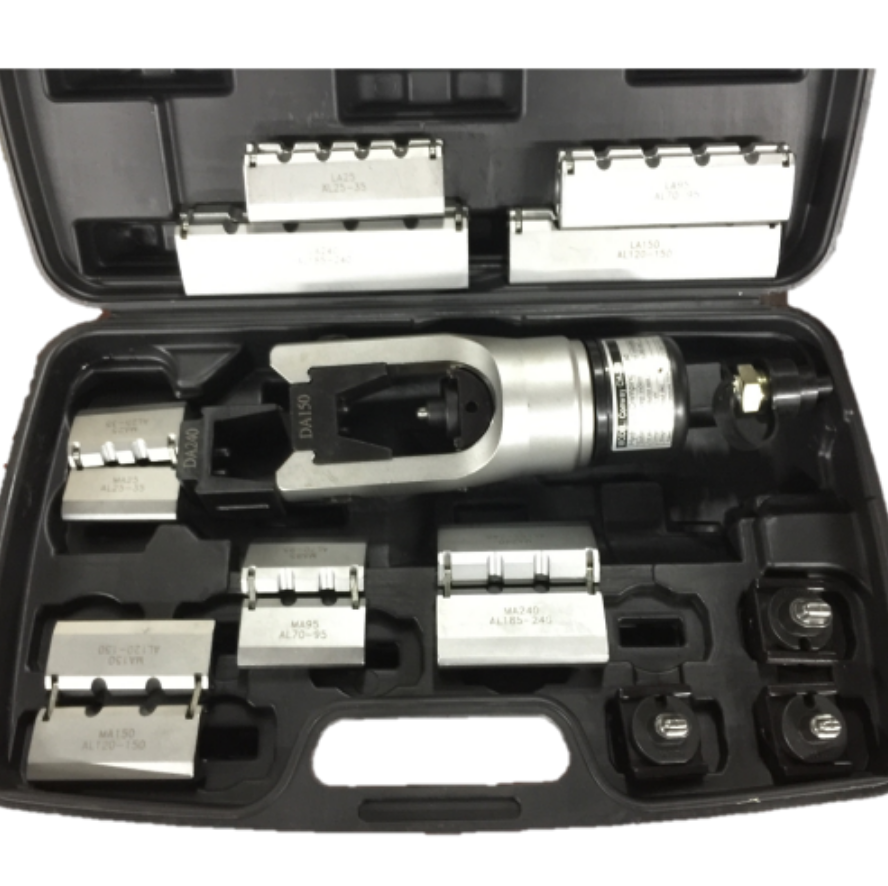

TCCH-240 Hydraulic Indent Tool
Deep indent volume-control dies for Aluminium Ferrules, Bi-metal Lugs and Rounding Dies.
Compliant to TNB Specification.
Crimping Type : Deep Indent (Controlled Volume)
Crimping Range : 25mm2 to 240mm2 (Aluminium Conductor)
Crimping Force : 120kN
Weight : 4.3kg (Without the dies)
Rated Operating Pressure :700kg/cm3 (10,000 P.S.I)

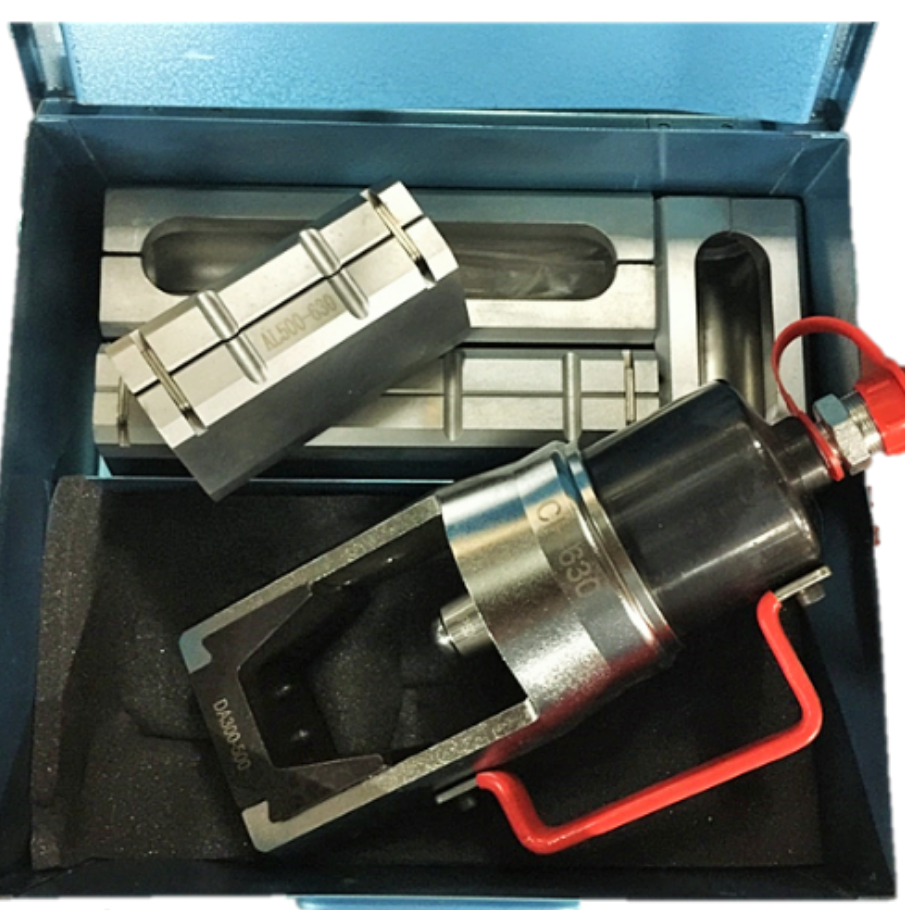

TCCH-630 Hydraulic Indent Tool
Deep indent volume-control dies for Aluminium Ferrules, Bi-metal Lugs and Rounding Dies.
Compliant to TNB Specification.
Crimping Type : Deep Indent (Controlled Volume)
Crimping Range : 300mm2 to 630mm2 (Aluminium Conductor)
Crimping Force : 200kN
Weight : 6.0kg (Without the dies)
Rated Operating Pressure :700kg/cm3 (10,000 P.S.I)
TCBC-150 Hydraulic Bar Cutter
Input Pressure : Max. 700bar or 10,000psi
Max. Width : 150mm
Max. Thickness : 10mm for Copper Bar
6mm for Mild Steel Plate
Weight : 26kg
TCBB-150 Hydraulic Bar Bender
Input Pressure : Max. 700bar or 10,000psi
Max. Width : 150mm
Max. Thickness : 10mm for Copper Bar
Weight : 23kg
TCCH-60 Hydraulic Hole Puncher
Input Pressure : Max. 700bar or 10,000psi
Output Force : 20 tons
Max. Thickness : 10mm for Copper Bar
6mm for Mild Steel Plate
Dies Size : 10.5mm, 13.5mm, 17.5mm and 20.5mm
Weight : 16kg

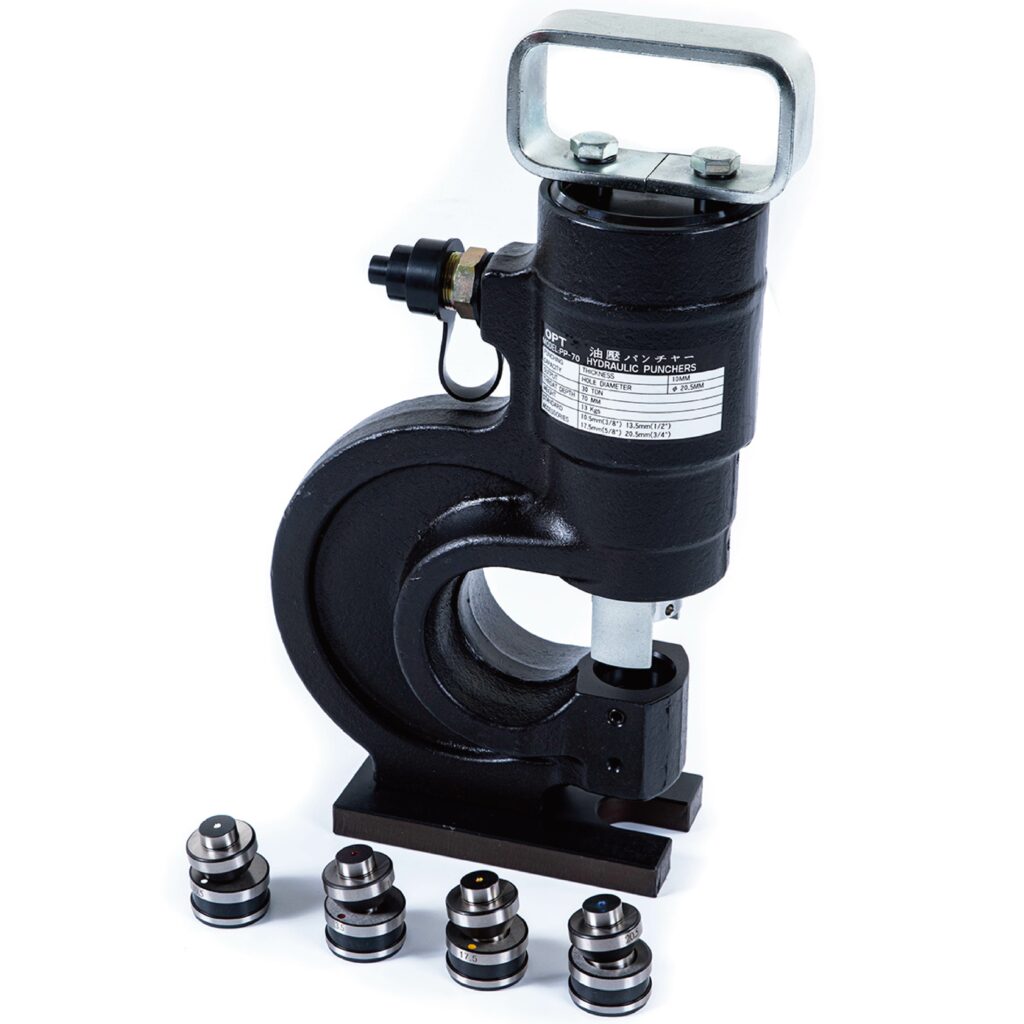

TOPT-PP-70 Hydraulic Hole Puncher (Pre-order)
Output Force : 30 tons
Max. Thickness : 10mm for metal plate
Punch Dies Size : 10.5mm, 13.5mm, 17.5mm and 20.5mm
Weight : 13kg
TCXS-630 Hydraulic Cable Cutter
Cutting of Copper & Aluminium PVC Cable
Input Pressure : Max. 700bar or 10,000psi
Opening Jaw : 45mm
Cutting Range : Up to 45mm OD
Total Length : 300mm
Weight : 5kg
TCHC-52 Hydraulic Hole Cutter
Input Pressure : Max. 700bar or 10,000psi
Output Force : 8 ton
Maximum Thickness : 2.5mm for Mild Steel Plate
Hole Size : 16.5 to 50.5mm
Weight : 4.0kg (Hole Cutter with a standard die)
TCHC-115 Hydraulic Hole Cutter
Input Pressure : Max.700bar or 10,000psi
Output Force : 12 ton
Max. Thickness : 2.5mm for Mild Steel Plate
Hole Size : 21.8 to 115.5mm
TCCP-630HP Hydraulic Hand Pump
Max. Pressure : 700bar or 10,000psi
Weight : 8.5kg
TCCP-630FP Hydraulic Foot Pump
Max. Pressure : 700bar or 10,000psi
Weight : 10.4kg
TCCP-400HP Hydraulic Hand Pump
Max. Pressure : 700bar or 10,000psi
Weight : 6kg
Length : 530mm
TCPM-1000 Electric Pump (Single Acting)
Max. Pressure : 700bar or 10,000psi
Reservoir Capacity : 2.6L
Oil Speed : 500c.c/Min. at Max. Pressure 700kgF/cm2
2750c.c/ Min. at Max. Pressure 20kgF/cm2
Weight : 21kg
TCPM-3001 Electric Pump (Double Acting)
Max. Pressure : 700bar or 10,000psi
Reservoir Capacity : 3.3L
Oil Speed : 500c.c/Min. at Max. Pressure 700kgF/cm2
2750c.c/ Min. at Max. Pressure 20kgF/cm2
Weight : 27kg
TBET-FL-135 Cable Preparation Set
10-35kV Portable Cable Preparation Set is used for preparing most power cable for splicing or terminating.
TBET-FL-210 Cable Preparation Set (Pre-order)
10kV Economical Portable Cable Preparation set is used for preparing most power cable for spicing or terminating.
TBET-FL-235 Cable Preparation Set (Pre-order)
35kV Economical Portable Cable Preparation set is used for preparing most power cable for spicing or terminating.
TBET-HC-50 Hydraulic Cable Cutter Tool
Cutting of Copper & Aluminium PVC Cable.
Output Force : 6 tons
Input Pressure : Max. 700bar or 10,000psi
Cutting Range : Up to 50mm OD
Weight : 3.9kg
TBET-J-52 Ratchet Cable Cutter
Cutting of Copper & Aluminium Core Armoured Cable
Cutting range : 500mm2
Weight : 3.1kg
TCHP-70A Hydraulic Crimping Tool
This hand operated hydraulic crimping tool provides up to 6kN crimp force.
It comes with two sets of dies ready to crimp copper braid and welding cable application.
Battery Tools
KLAUKE Electromechanical Crimping Tool
(TKLA-EK50ML)
0.5 – 6mm2 crimping range
Max. 15kN crimping force
300 crimps at 6mm2 Cu per battery charge
weighs 1.1kg
KLAUKE Battery Powered Hydraulic Crimping Tool (TKLA-EKM6022L)
16 – 300mm2 Cu crimping range
60kN crimping force
5 sec. crimping cycle
300 – 400 crimps at 150mm2 Cu Lug
Weights 3.2kg with battery
KLAUKE Battery-Powered Hydraulic Crimping Tool (TKLA- EK1264AP)
16 – 400mm2 Cu crimping range
120kN crimping force
Approx. 8 to 9 sec. crimping cycle
Weighs 6.1kg with battery
KLAUKE Battery-Powered Ratchet Cable Cutter
(TKLA-ESCU55AP)
Cuts up to 500mm2 Cu, 630mm2 Al (Non-armoured cable)
18.0V, 3.0Ah battery capacity
7 to 8 sec. cutting time depends on cable
Weights 3.5kg with battery
KLAUKE Electromechanical Stripping Tool
(TKLA-EKSD50ML)
6 – 35mm2 stripping range
Up to 28mm stripping length
Up to 11.5mm diameter
10.8V battery voltage
Weights 1.20kg with battery
OPT Electrician Tools

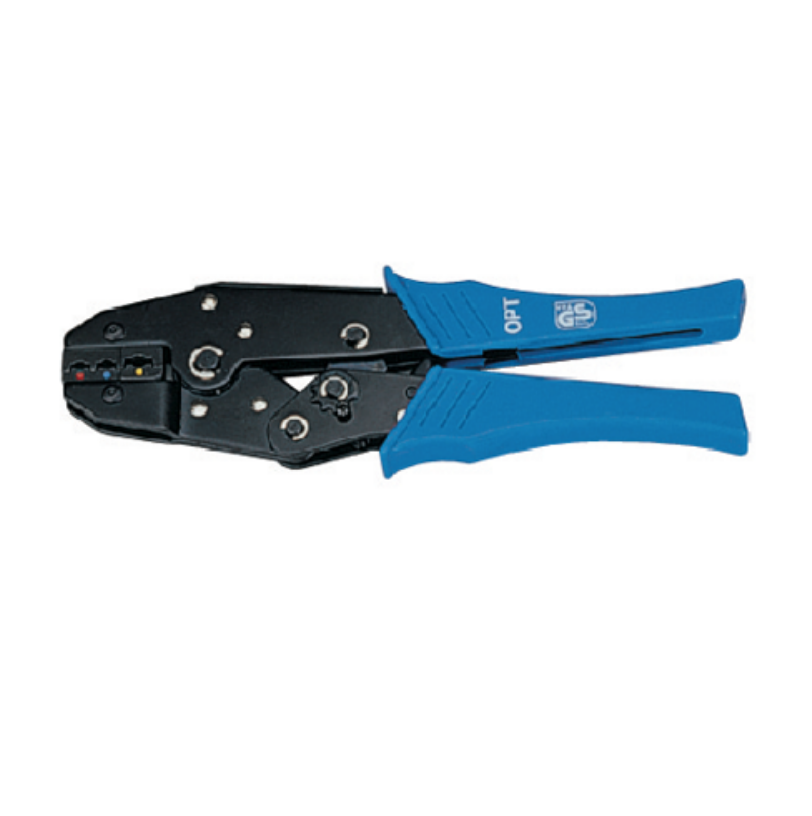

TOPT-LY-03C
For insulated terminals and connectors.
Ratchet type.
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
Length: 230mm

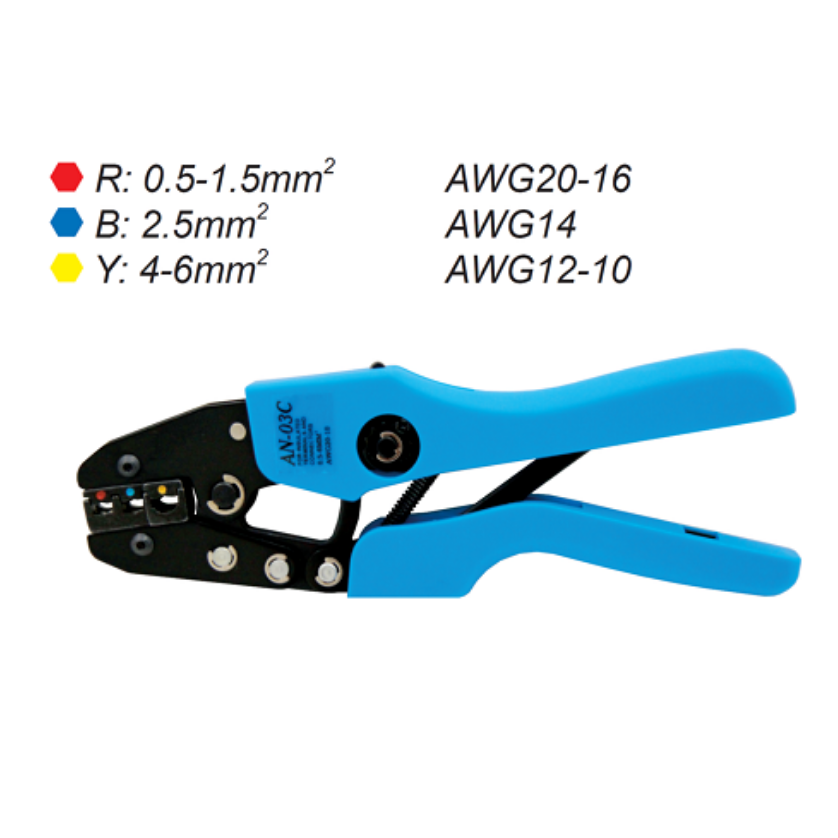

TOPT-ANB-03C
For insulated terminals and connectors.
Ratchet type.
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
Length: 230mm

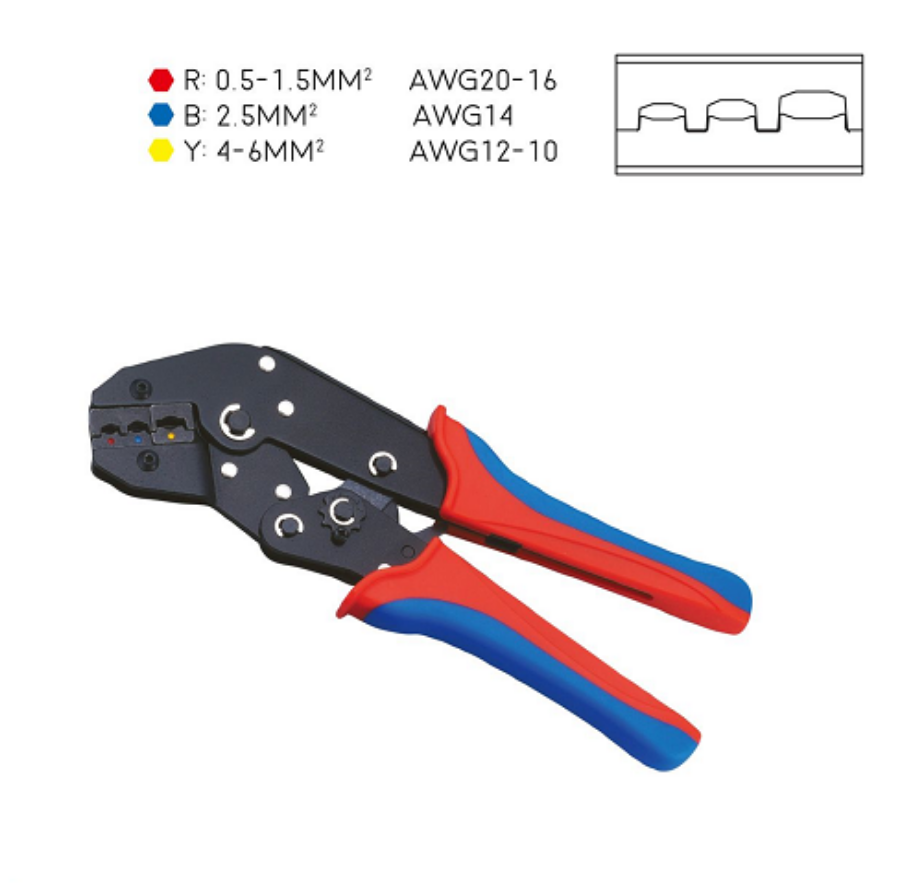

TOPT-FN-03C
For insulated terminals and connectors.
Ratchet type.
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
Length: 230mm
TOPT-LY-03C-5D (Pre-order)
Dies (TOPT-LY-03C) For Insulated Terminal & Connector
Dies (TOPT-LY-03B) For Non-insulated Receptacle & Tab Terminal
Dies (TOPT-LY-04WF) Dies (TOPT-LY-16WF) For Wire Ferrules & End Sleeves
Dies (TOPT-LY-10) For Non-insulated Terminal

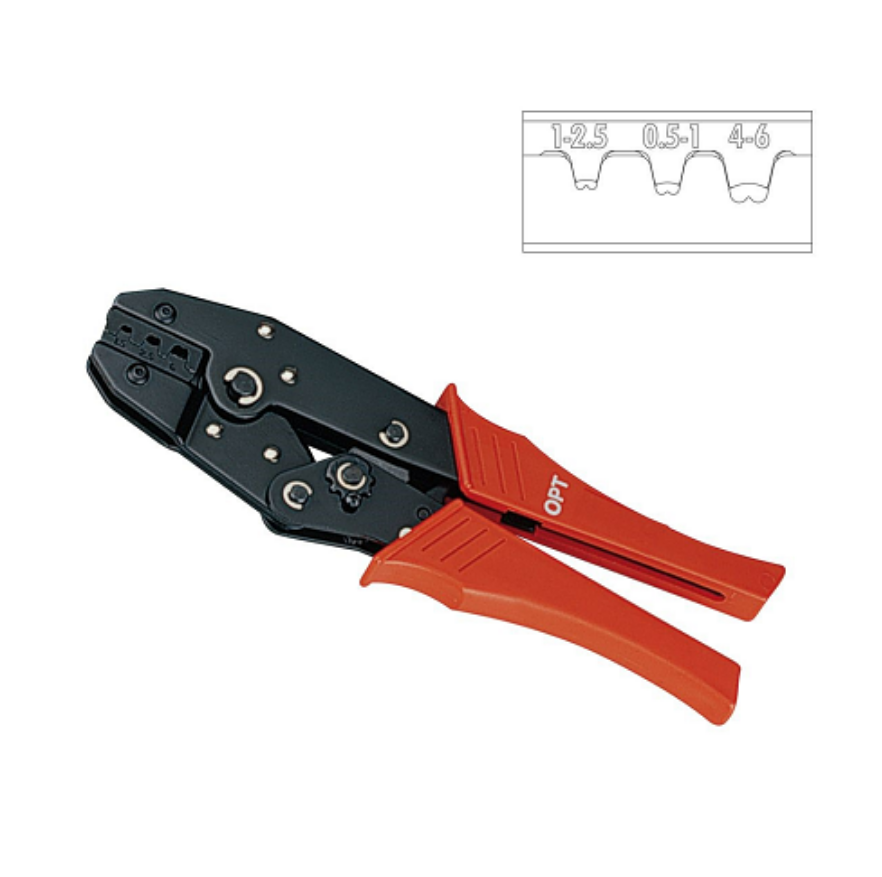

TOPT-LY-03B
For insulated receptable & tab terminals.
Ratchet type. Tab width = 6.3mm
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
Length: 230mm

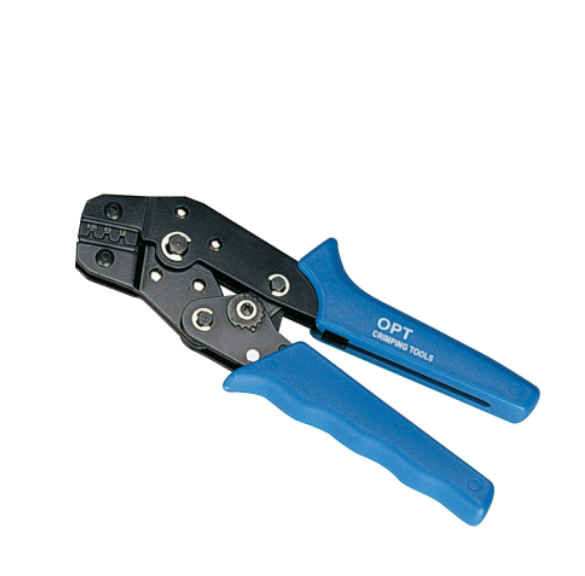

TOPT-SN-28B
For open barrel terminal & non-insulated receptable tab terminal.
Tab width = 2.8mm
Crimping range: 0.25 – 1mm2
Weight: 0.35kg
Length: 190mm

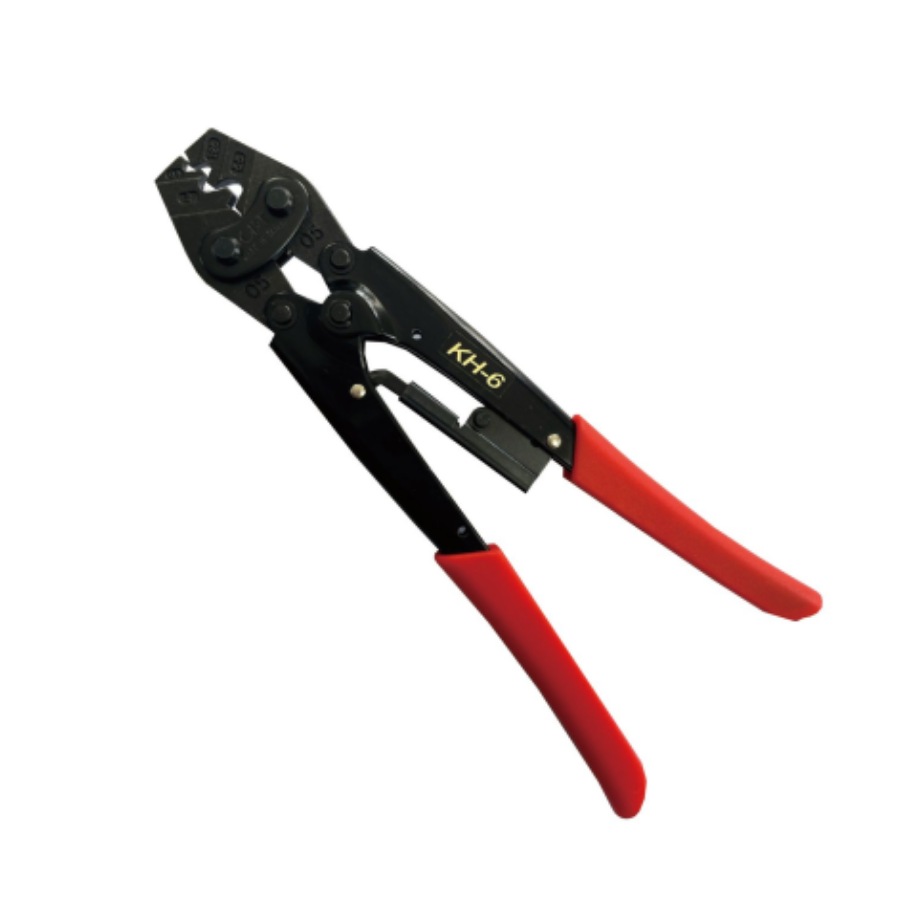

TOPT-KH-6
For cable lug / non-insulated terminal.
Ratchet type. PVC Handle. Smart-open knob.
Crimping range: 0.75 – 6mm2
Weight: 0.23kg
Length: 195mm

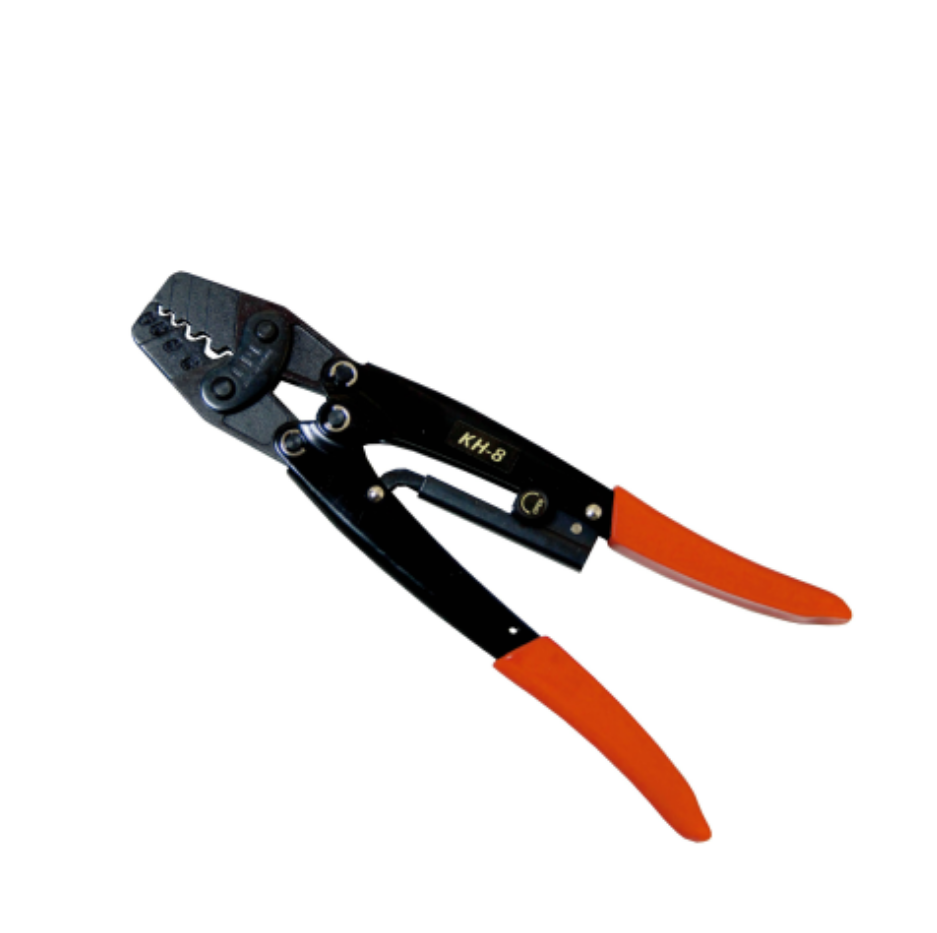

TOPT-KH-8
For cable lug / non-insulated terminal.
Ratchet type. PVC Handle. Smart-open knob.
Crimping range: 1.5 – 10mm2
Weight: 0.6kg
Length: 250mm

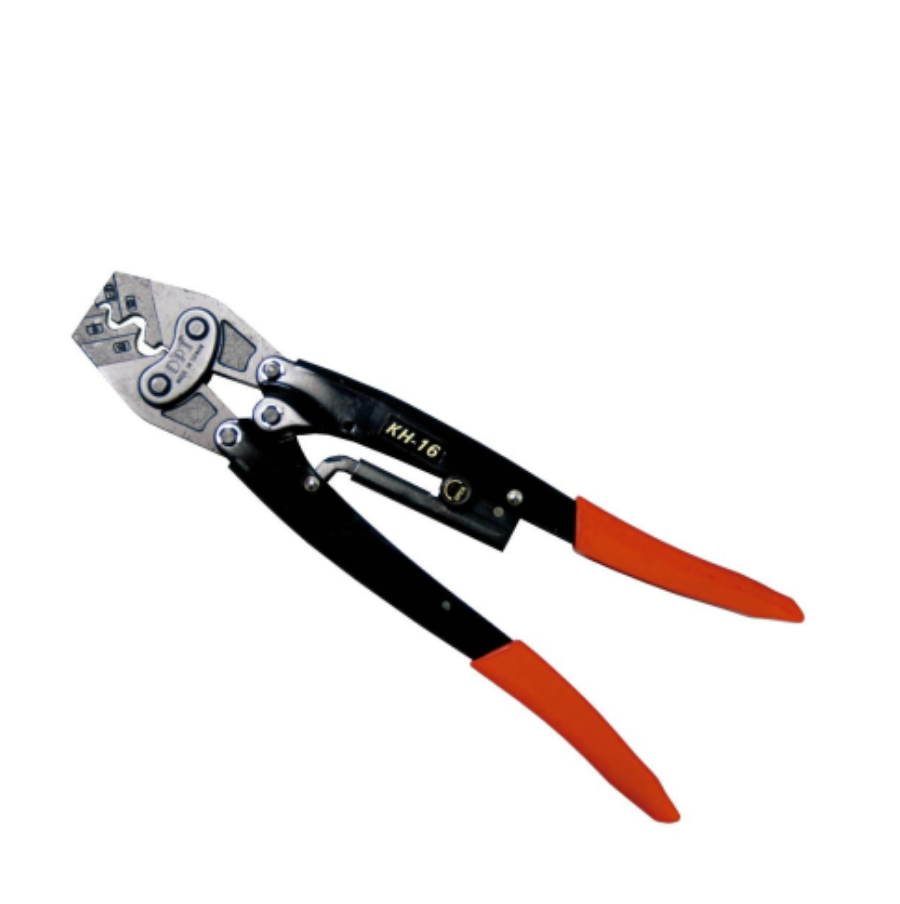

TOPT-KH-16
For cable lug / non-insulated terminal.
Ratchet type. PVC Handle. Smart-open knob.
Crimping range: 1.5 – 16mm2
Weight: 0.6kg
Length: 280mm

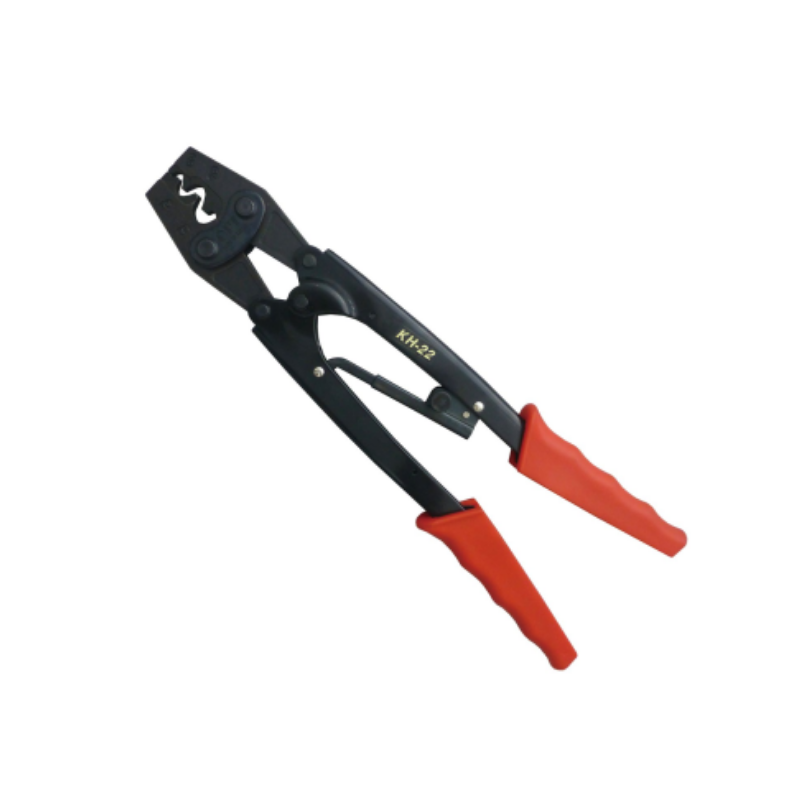

TOPT-KH-22
For cable lug / non-insulated terminal.
Ratchet type. PVC Handle. Smart-open knob.
Crimping range: 6 – 25mm2
Weight: 0.92kg
Length: 365mm

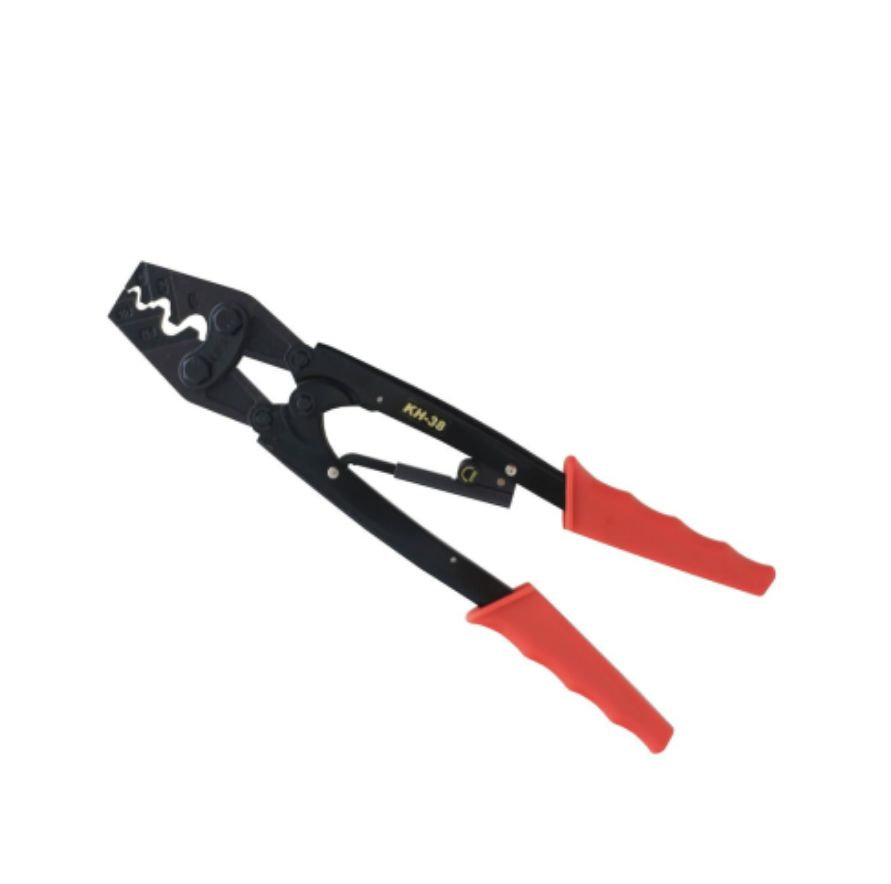

TOPT-KH-38
For cable lug / non-insulated terminal.
Ratchet type. PVC Handle. Smart-open knob.
Crimping range: 6 – 35mm2
Weight: 0.92kg
Length: 365mm

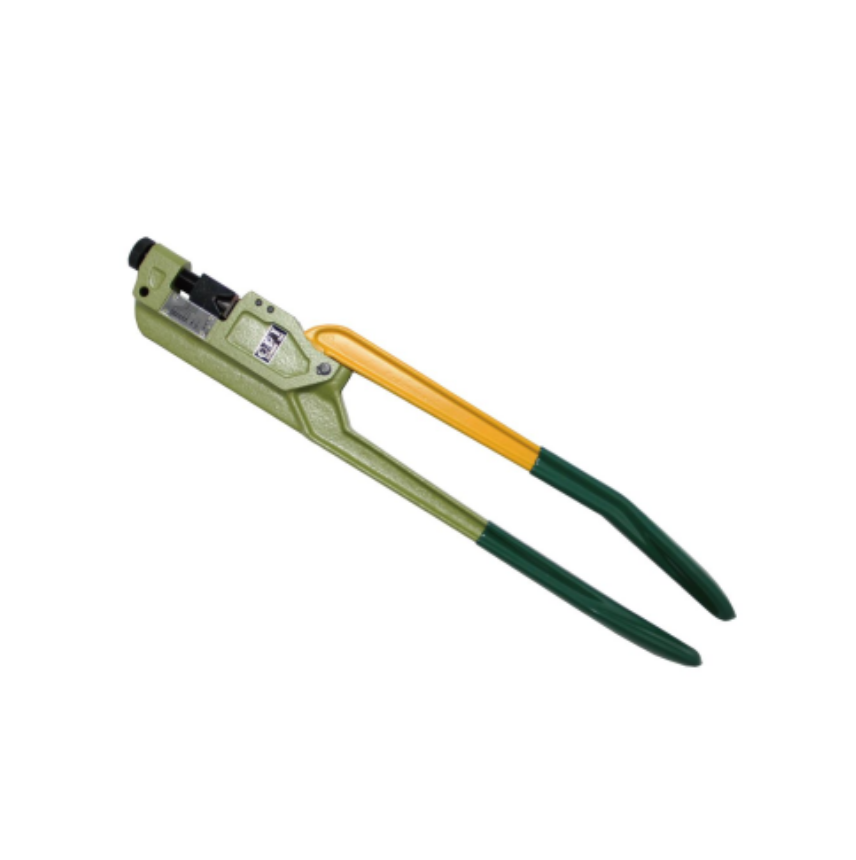

TOPT-KH-120
For copper cable lug and link.
Non ratchet adjusting screw type.
Crimping range: 10 – 95mm2
Weight: 2.8kg
Length: 558mm

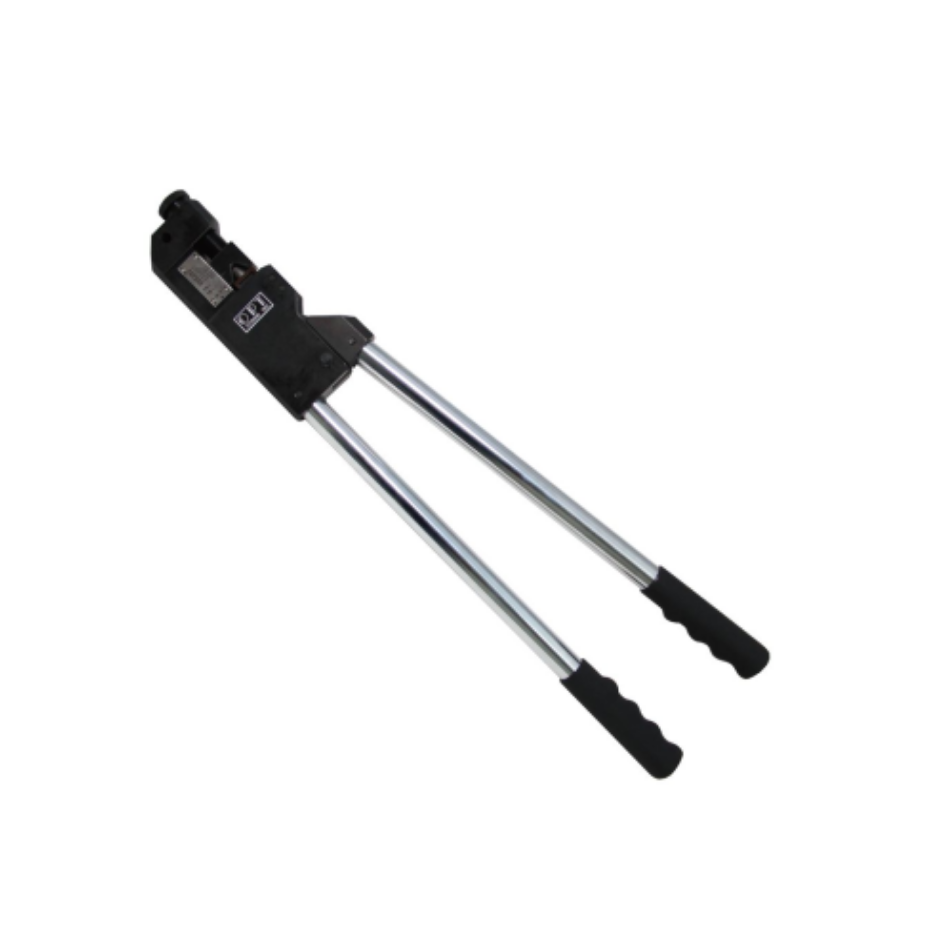

TOPT-KH-150
For copper cable lug and link.
Non ratchet adjusting screw type.
Crimping range: 10 – 120mm2
Weight: 3.5kg
Length: 595mm

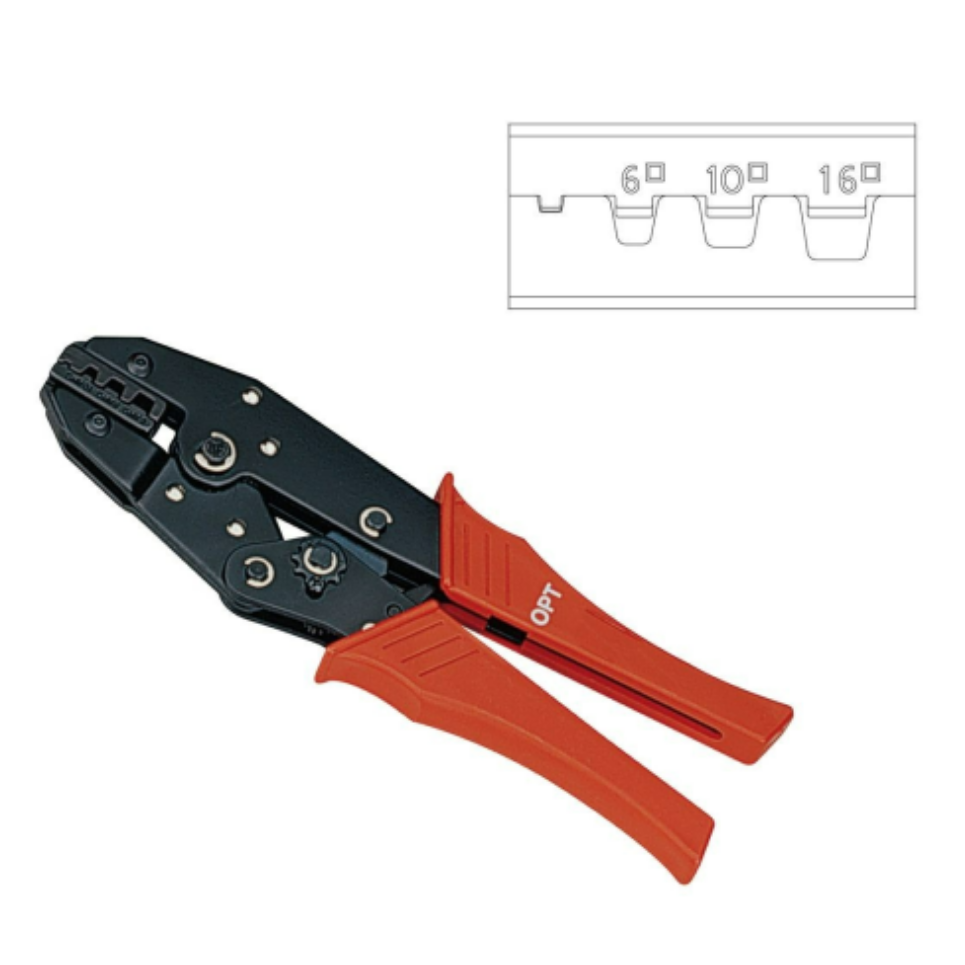

TOPT-LY-06WF
For wire ferrule and end sleeve.
Ratchet type.
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
Length: 230mm
TOPT-LY-16WF
For wire ferrule and end sleeve.
Ratchet type.
Crimping range: 6 – 16mm2
Weight: 0.6kg
Length: 230mm

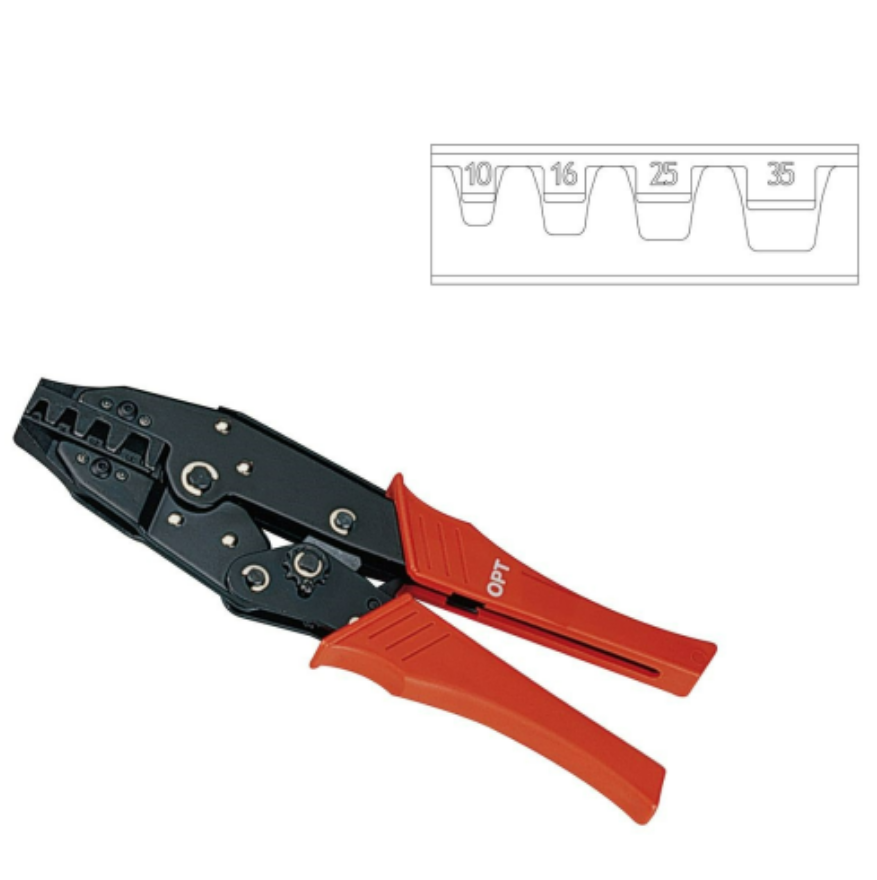

TOPT-LY-35WF
For wire ferrule and end sleeve.
Ratchet type.
Crimping range: 10 – 35mm2
Weight: 0.6kg
Length: 240mm

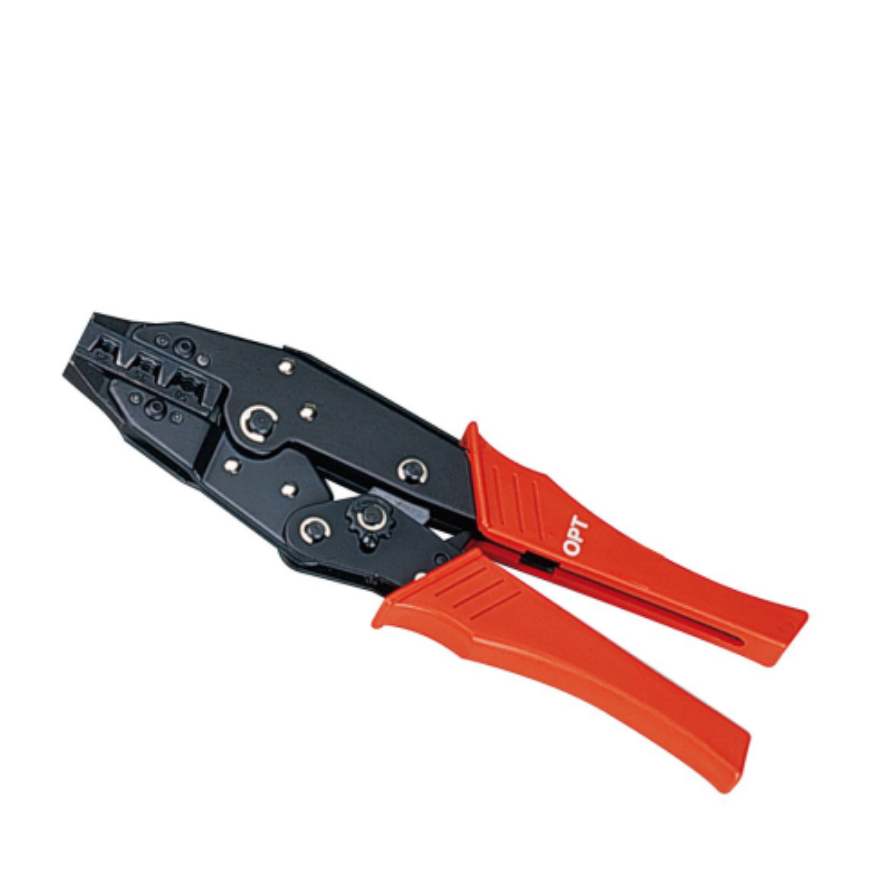

TOPT-LY-50WF
For wire ferrule and end sleeve.
Ratchet type.
Crimping range: 25 – 50mm2
Weight: 0.6kg
Length: 240mm

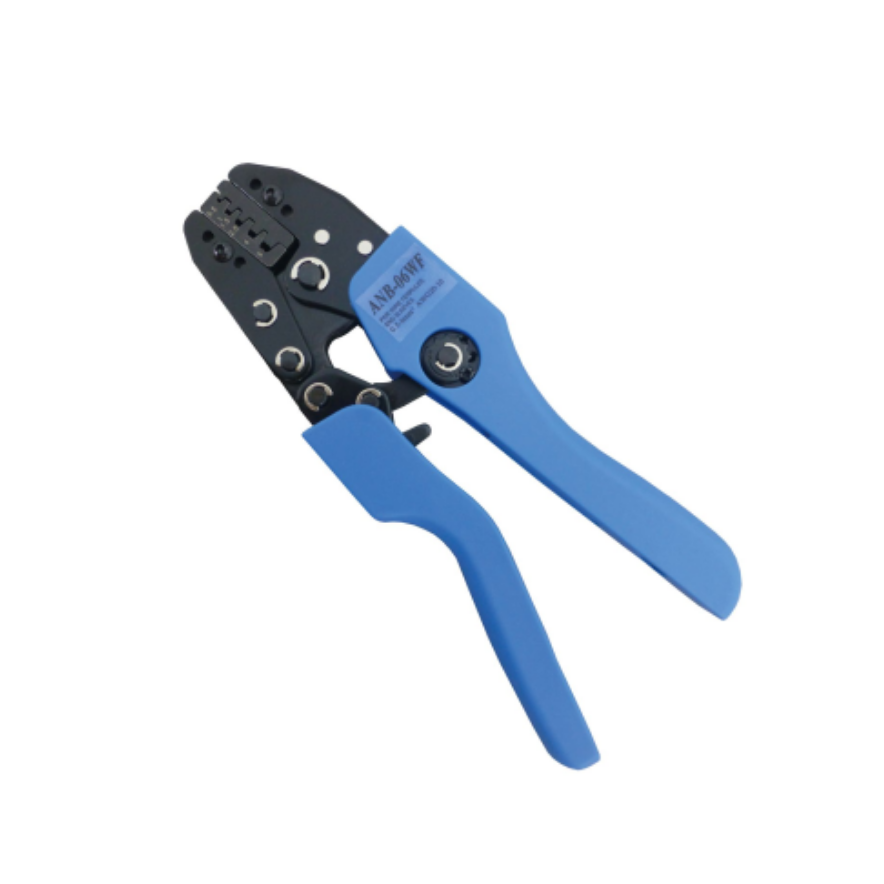

TOPT-ANB-06WF
For wire ferrule and end sleeve.
Ratchet type. Premium handle.
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
Length: 230mm

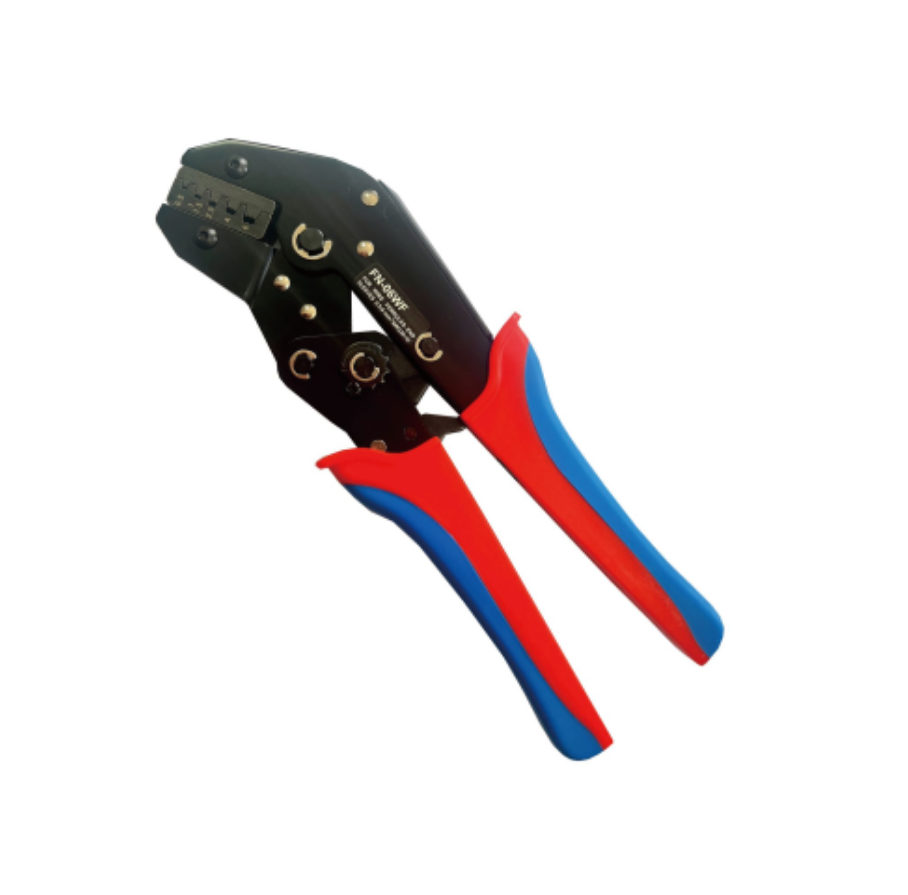

TOPT-FN-06WF
For wire ferrule and end sleeve.
Ratchet type. Premium handle.
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
Length: 230mm

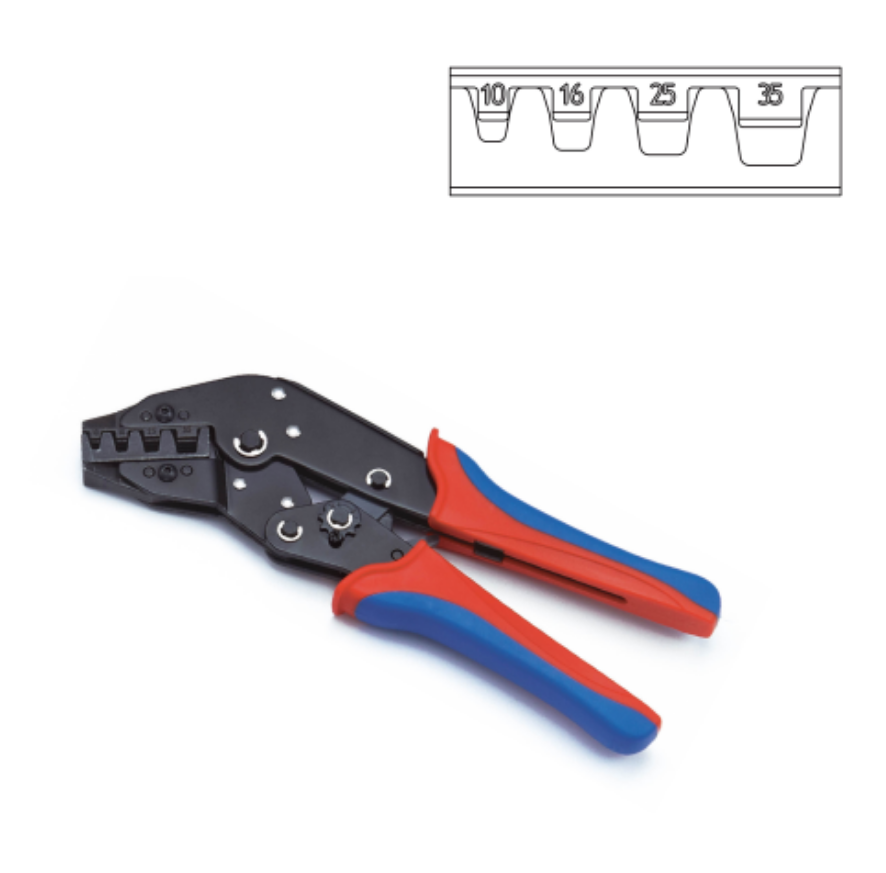

TOPT-FN-35WF
For wire ferrule and end sleeve.
Ratchet type. Premium handle.
Crimping range: 10 – 35mm2
Weight: 0.6kg
Length: 240mm

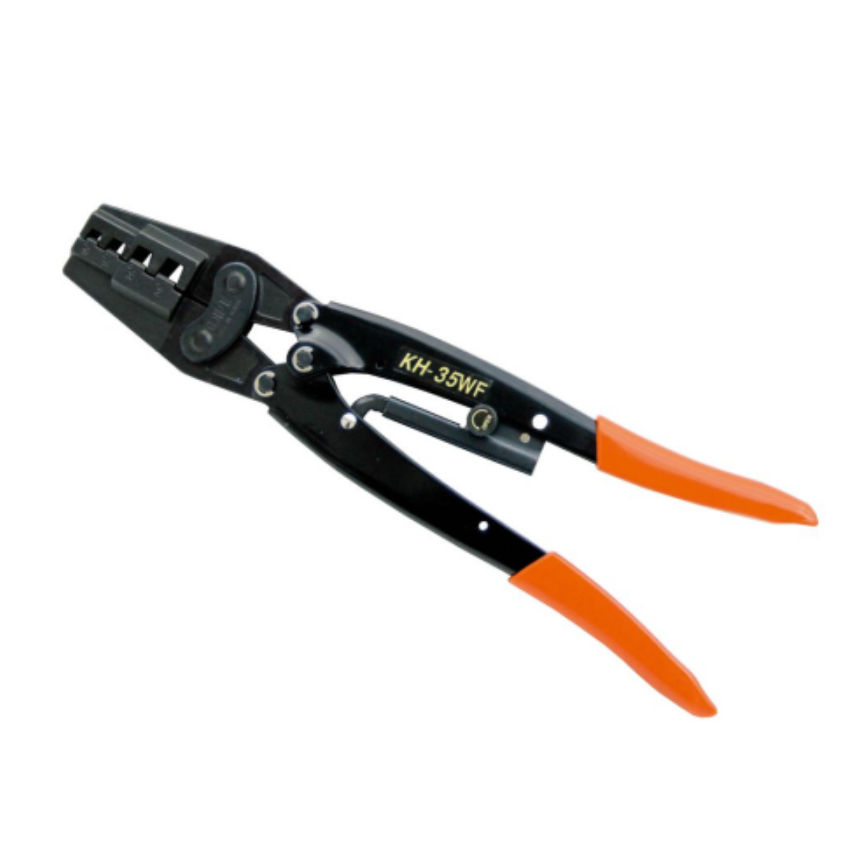

TOPT-KH-35WF
For wire ferrule and end sleeve.
Ratchet type. PVC Handle. Smart open knob.
Crimping range: 10 – 35mm2
Weight: 0.64kg
Length: 280mm

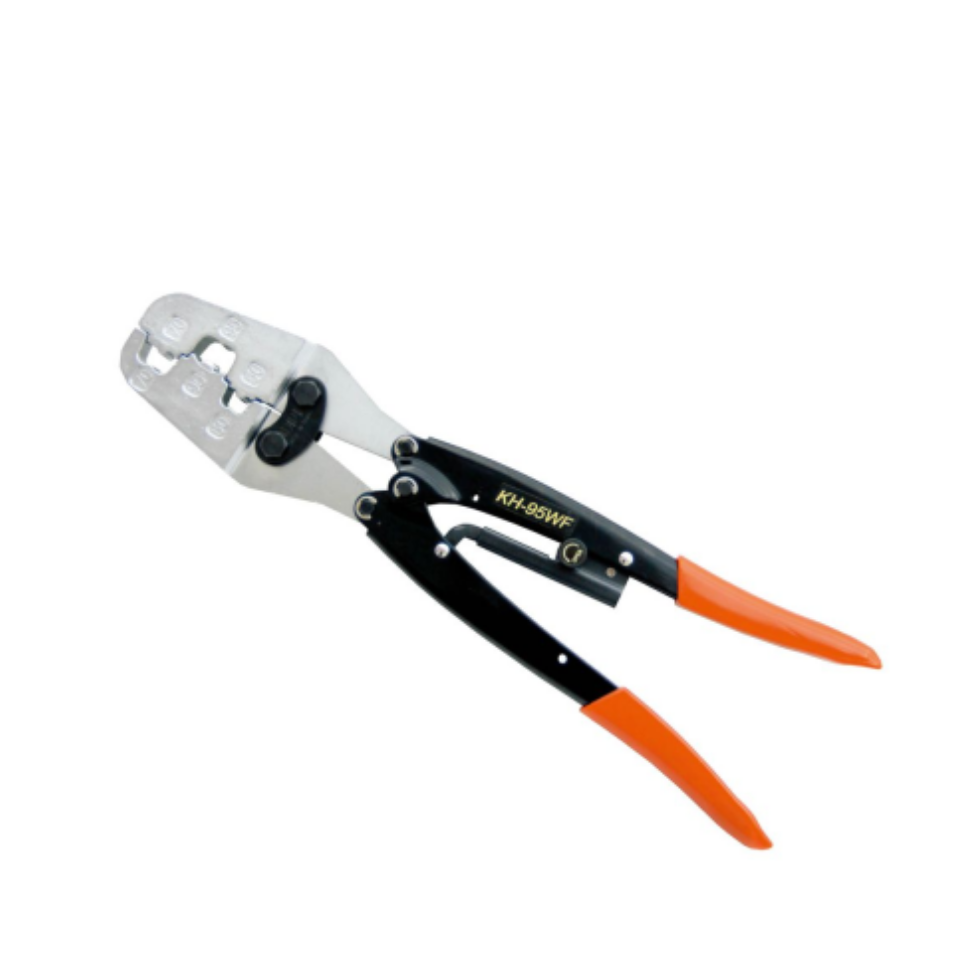

TOPT-KH-95WF
For wire ferrule and end sleeve.
Ratchet type. PVC Handle. Smart open knob.
Crimping range: 50 – 95mm2
Weight: 0.76kg
Length: 330mm

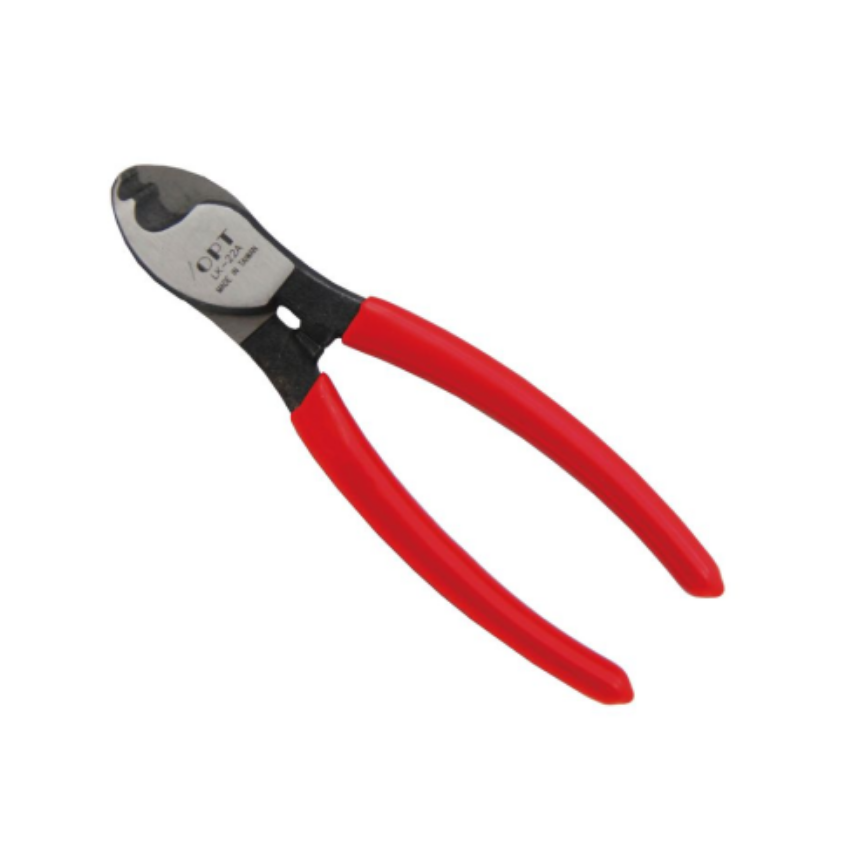

TOPT-LK-22A
For copper and aluminium cable.
Cutting blades are made of heavy duty forged steel.
Cutting range: 22mm2
Weight: 0.2kg
Length: 160mm

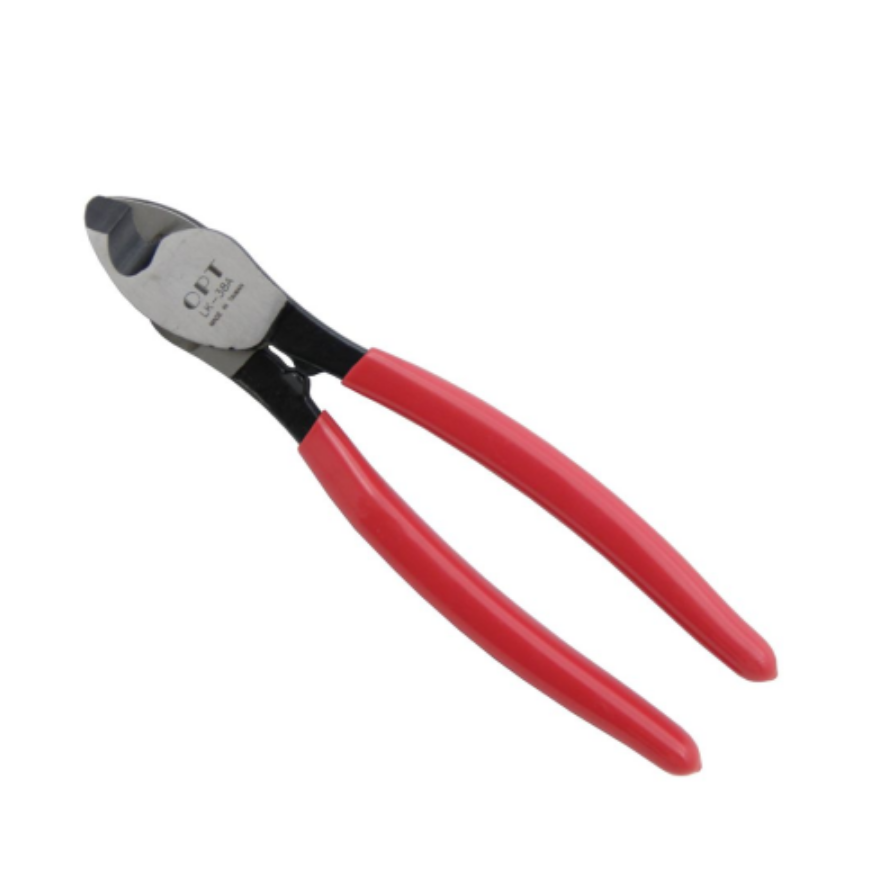

TOPT-LK-38A
For copper and aluminium cable.
Cutting blades are made of heavy duty forged steel.
Cutting range: 38mm2
Weight: 0.3kg
Length: 210mm

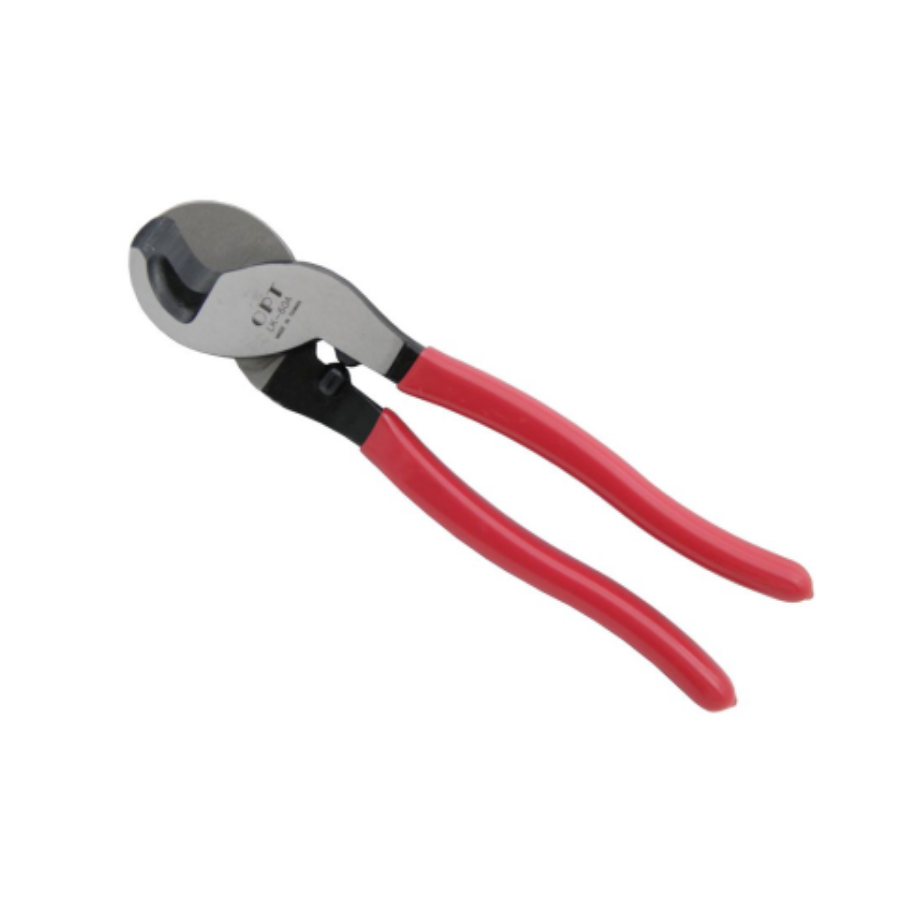

TOPT-LK-60A
For copper and aluminium cable.
Cutting blades are made of heavy duty forged steel.
Cutting range: 60mm2
Weight: 0.5kg
Length: 235mm

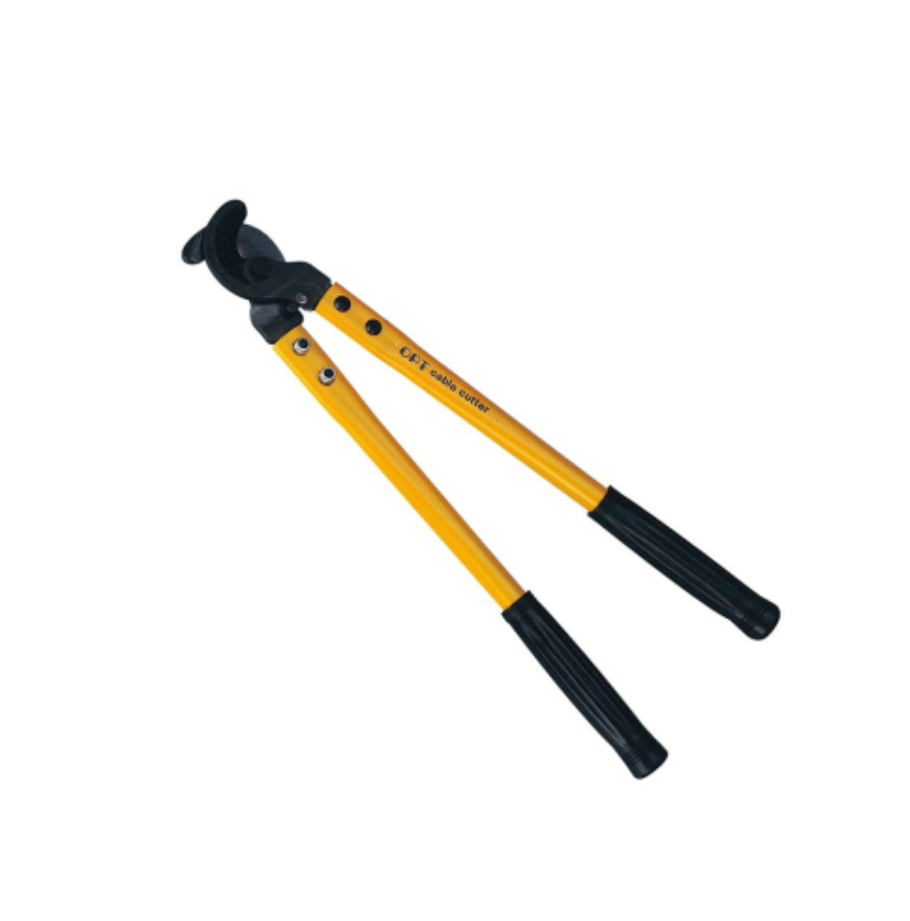

TOPT-LK-125
For copper and aluminium cable.
Cutting blades are made of heavy duty forged steel.
Cutting range: 125mm2
Weight: 0.7kg
Length: 300mm

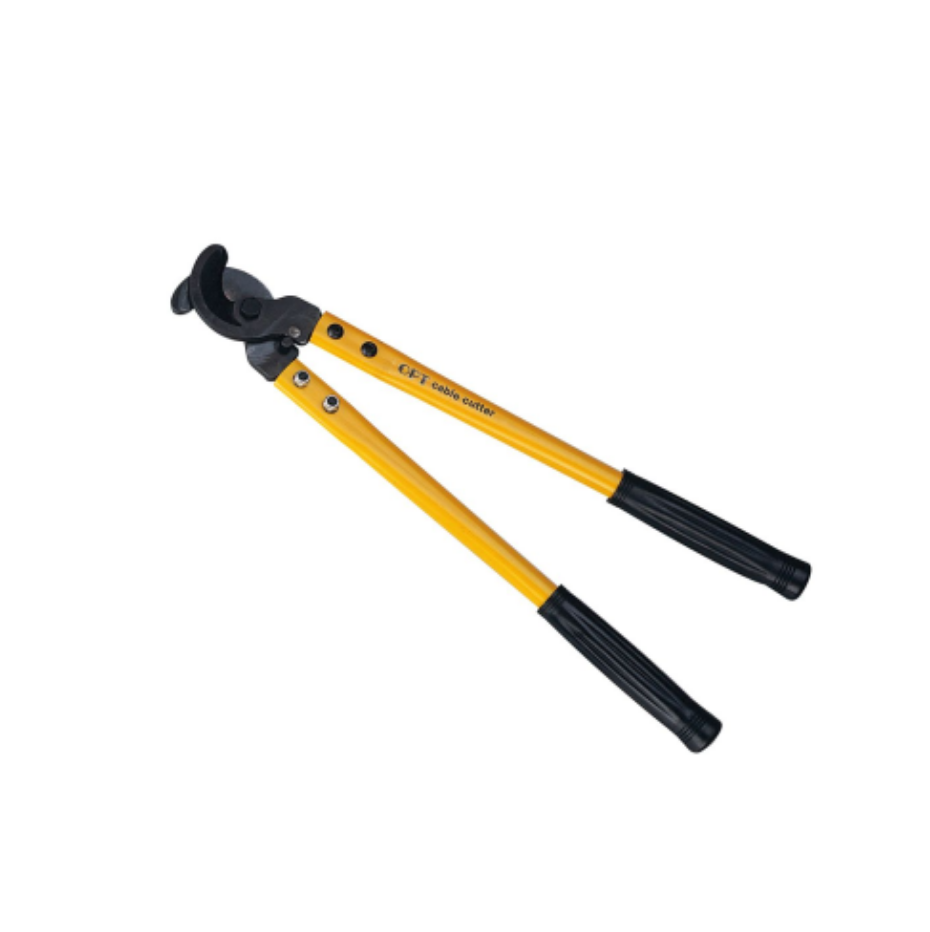

TOPT-LK-250
For copper and aluminium cable.
Cutting blades are made of heavy duty forged steel.
Cutting range: 250mm2
Weight: 1.2kg
Length: 530mm

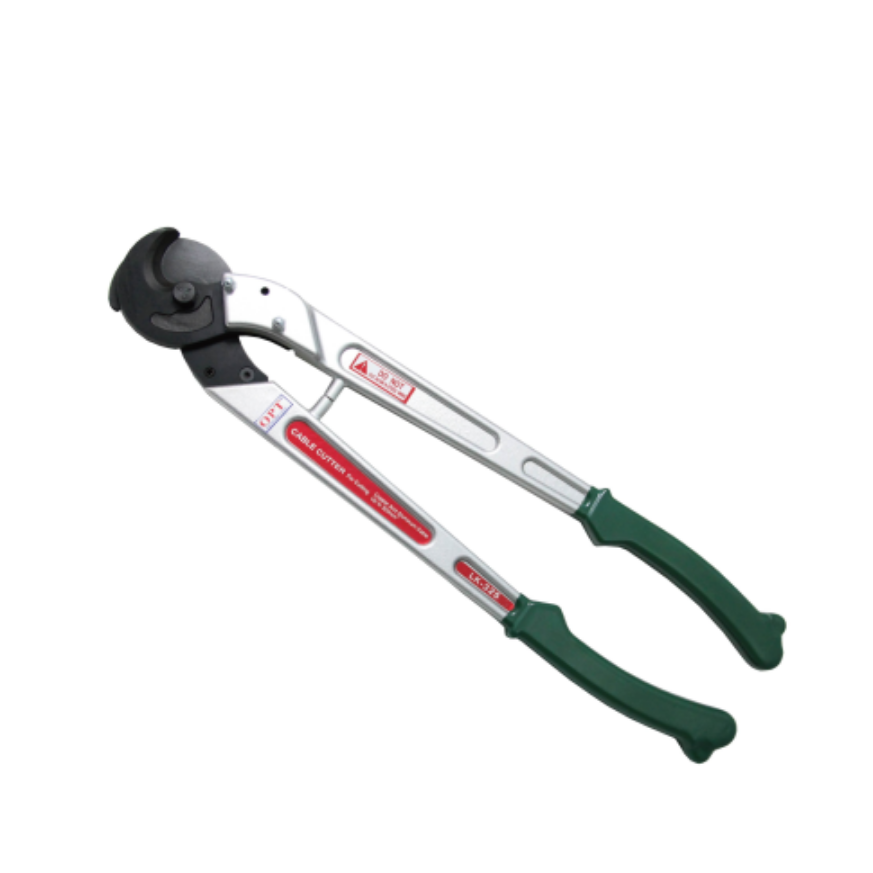

TOPT-LK-325
For copper and aluminium cable.
Cutting range: 325mm2
Weight: 2.1kg
Length: 600mm

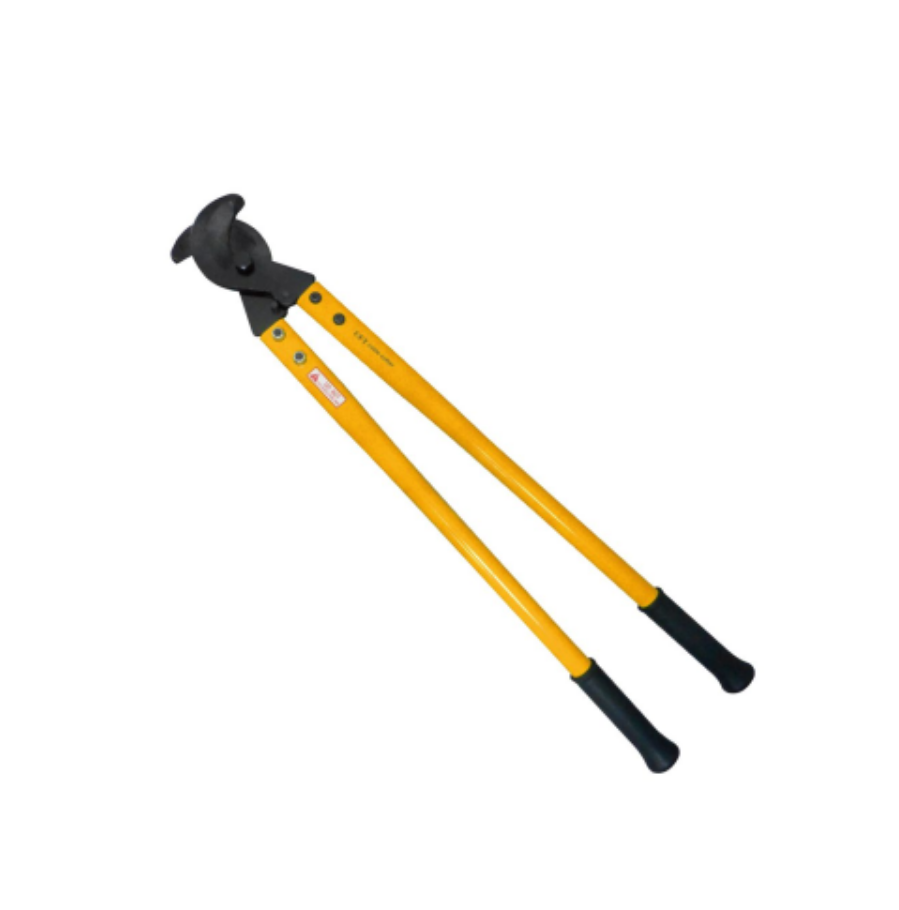

TOPT-LK-500
For copper and aluminium cable.
Cutting blades are made of heavy duty forged steel.
Cutting range: 500mm2
Weight: 3.0kg
Length: 770mm

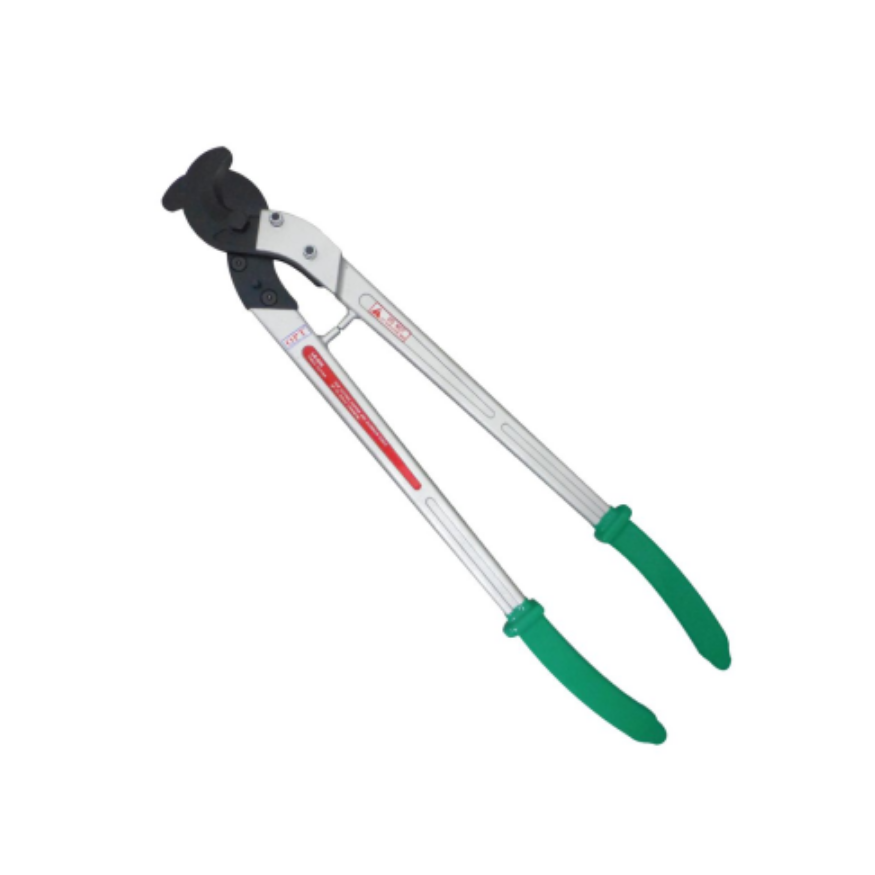

TOPT-LK-550
For copper and aluminium cable.
Cutting blades are made of heavy duty forged steel.
Cutting range: 550mm2
Weight: 3.2kg
Length: 800mm

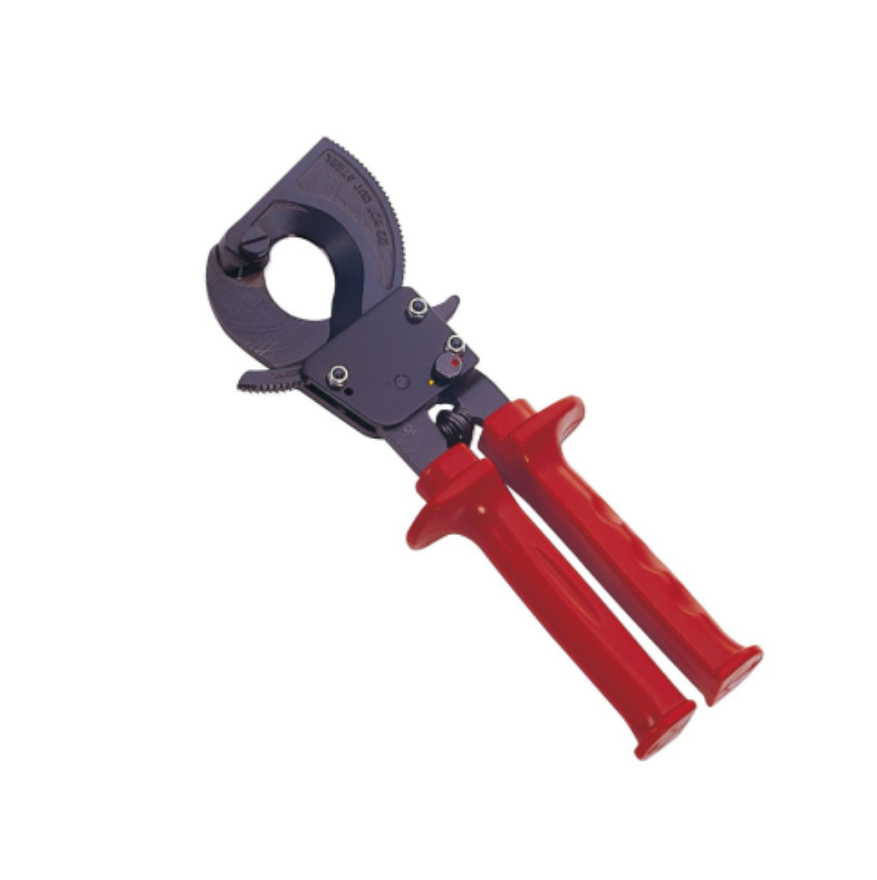

TOPT-LK-300B
For copper and aluminium cable.
Cutting range: 300mm2
Weight: 0.6kg
Length: 240mm

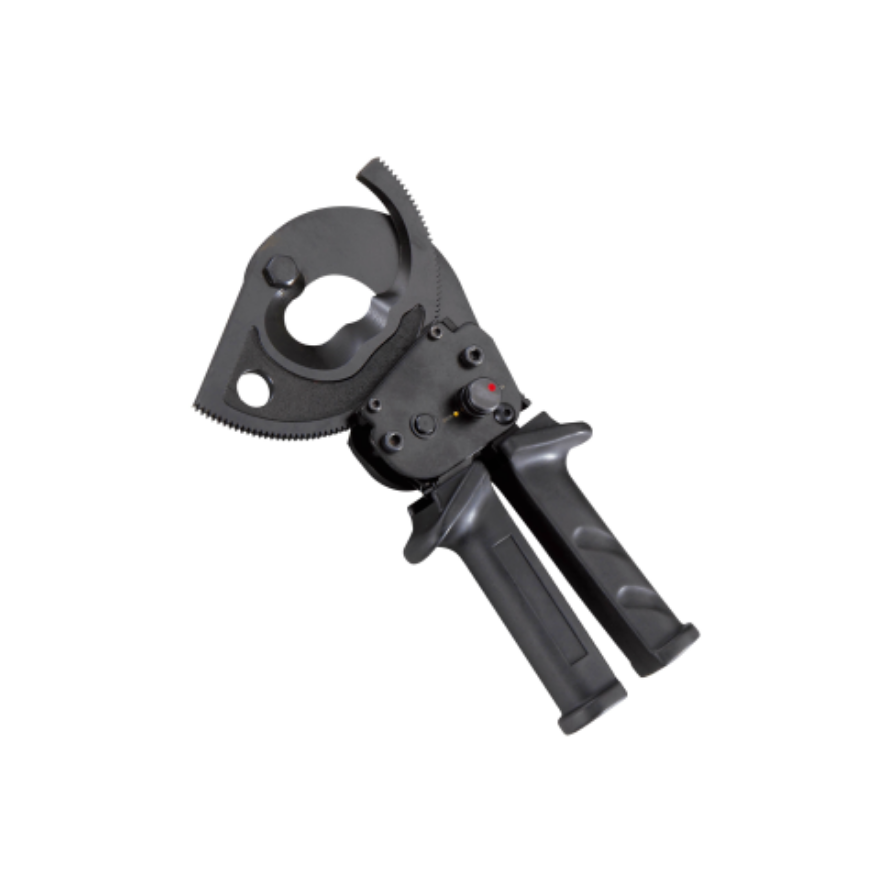

TOPT-LK-450A
For copper and aluminium cable.
Cutting range: 400mm2
Weight: 0.96kg
Length: 240mm

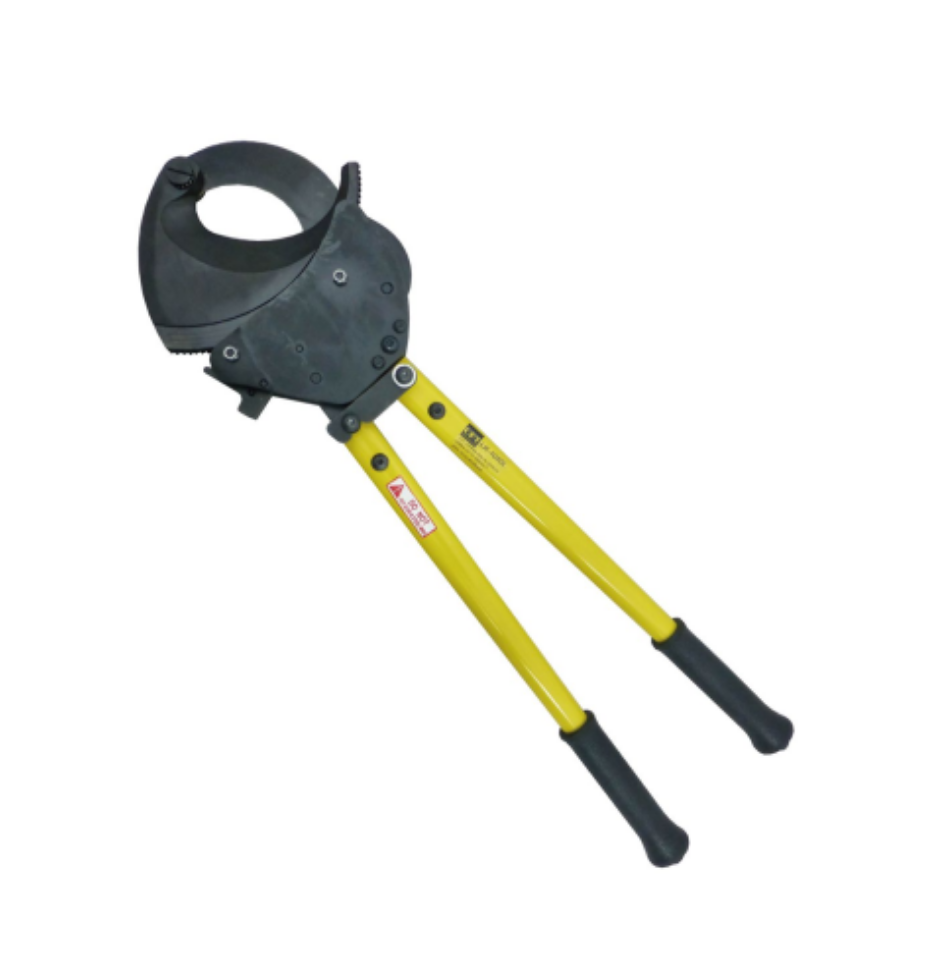

TOPT-LK-1050L
For copper and aluminium cable.
Cutting range: 1000mm2
Weight: 3.8kg
Length: 680mm

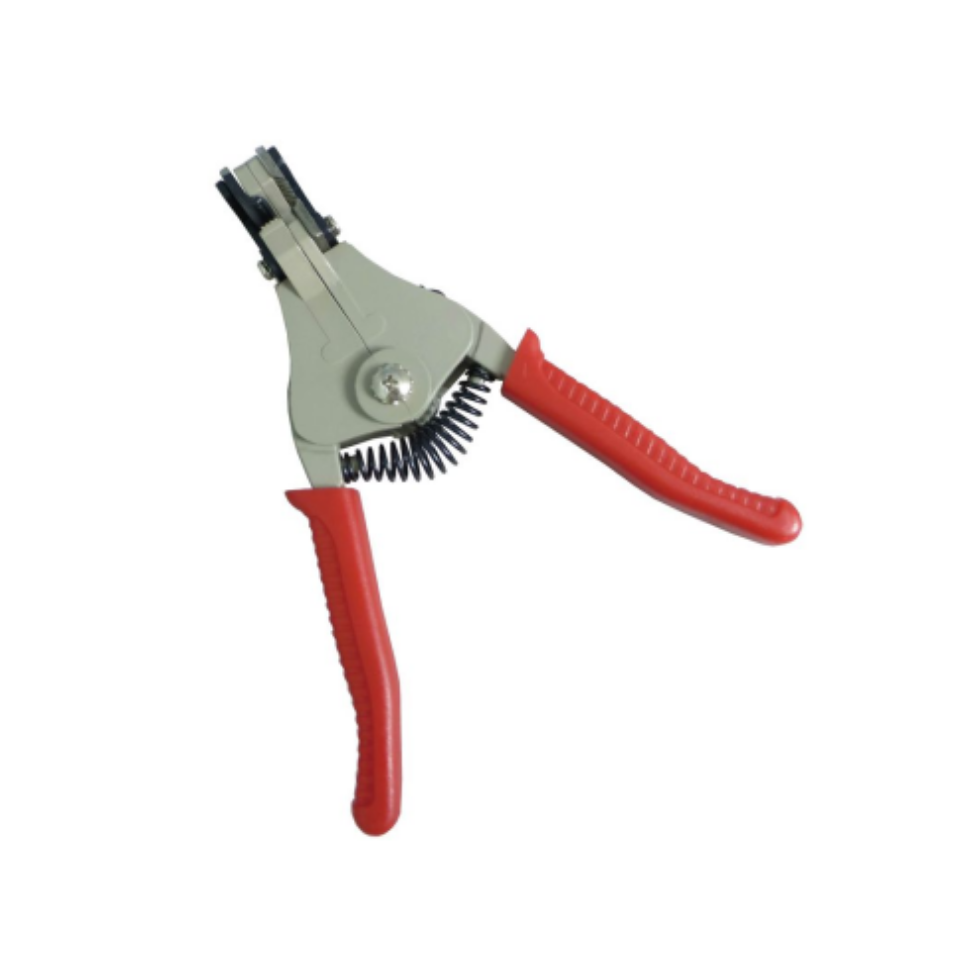

TOPT-LY-700B
Stripping range : 6-1/2”
(Dia. of cutting blade : 1, 1.6, 2, 2.6, 3.2mm)

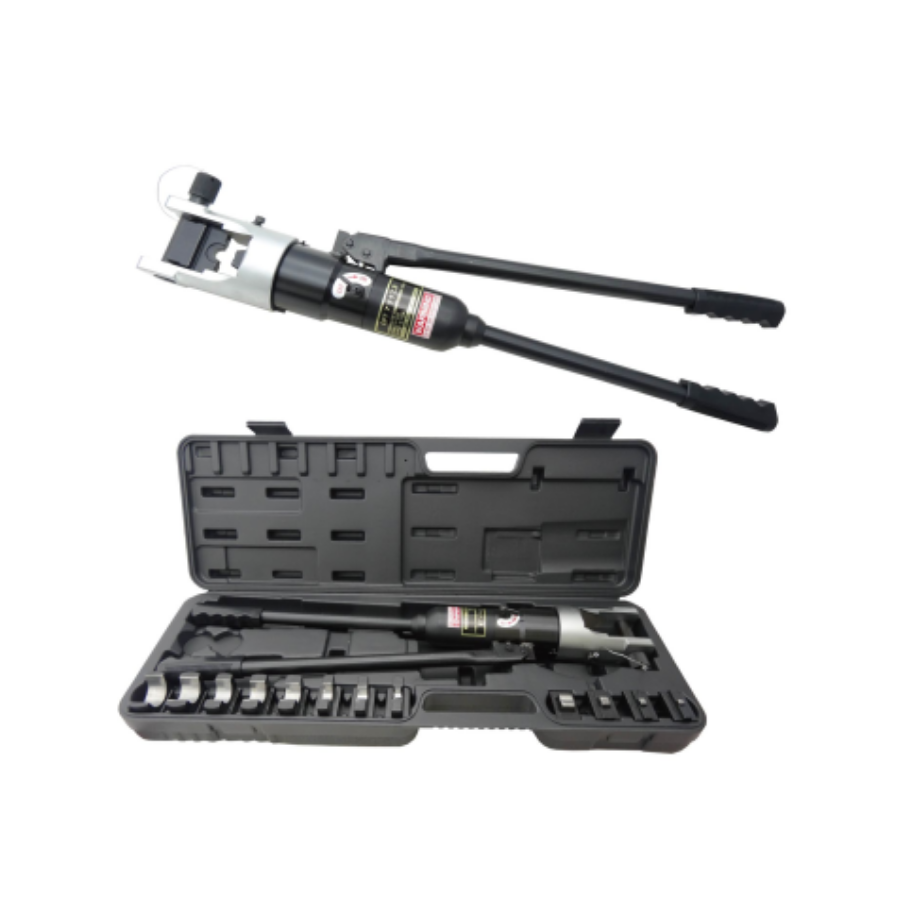

TOPT-TP-325 (Pre-order)
Hydraulic Crimping Tool A hydraulic crimping tool for Copper cable lugs and connectors.
Crimping Type : Indent
Crimping Range : 16mm2 to 400mm2
Output force : 18 Tons Weight / Length : 6.2kg / 650mm (Tool only)
Set includes : Crimping Tool and 4pcs of Male dies (16, 25-35, 50-120, 150-400mm2 )
8pcs Female Dies (16-25, 35-70, 95-120, 150, 185, 240, 300 & 400mm2 ) Carrying case

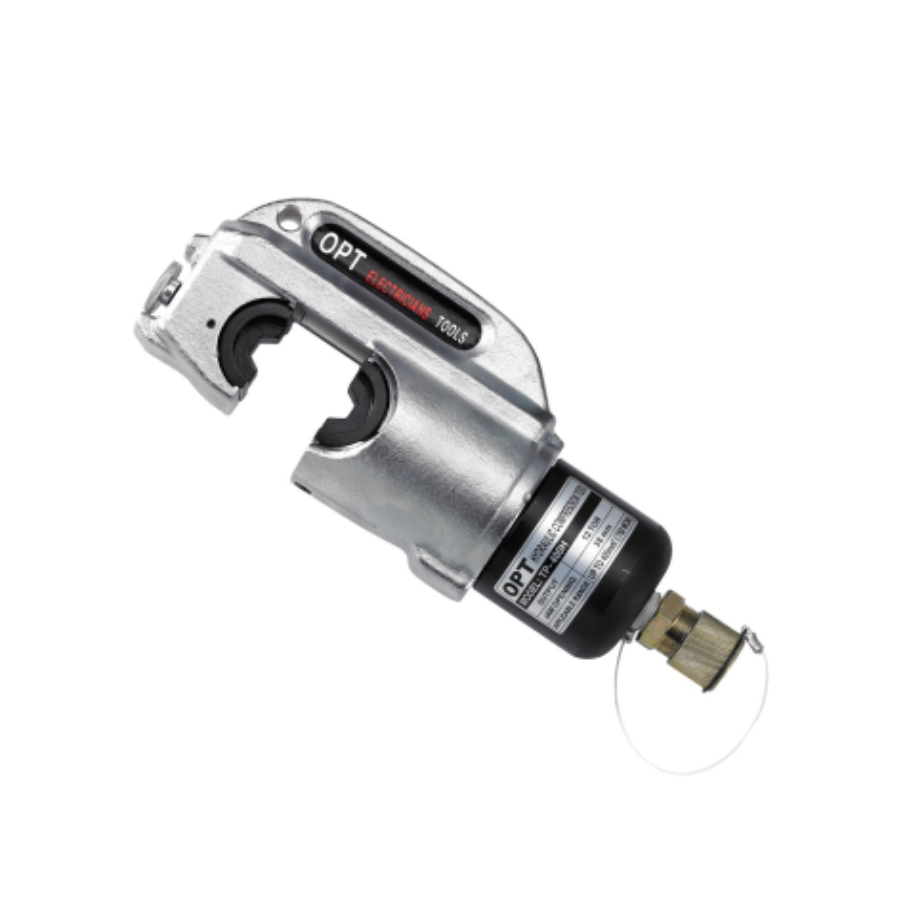

TOPT-TP-420H (Pre-order)
Hydraulic Crimping Head A hydraulic crimping head for Copper cable lugs and connectors.
Crimping Type : Hexagon
Crimping Range : 35mm2 to 400mm2
Jaw Opening : 42mm C-Jaw
Output force : 12 Tons
Weight / Length : 5.3kg / 250mm (Head only)
Set includes : Crimping Tool and 10pcs of dies set
(35, 50, 70, 95, 120, 150, 185, 240, 300 & 400mm2 ) Carrying case

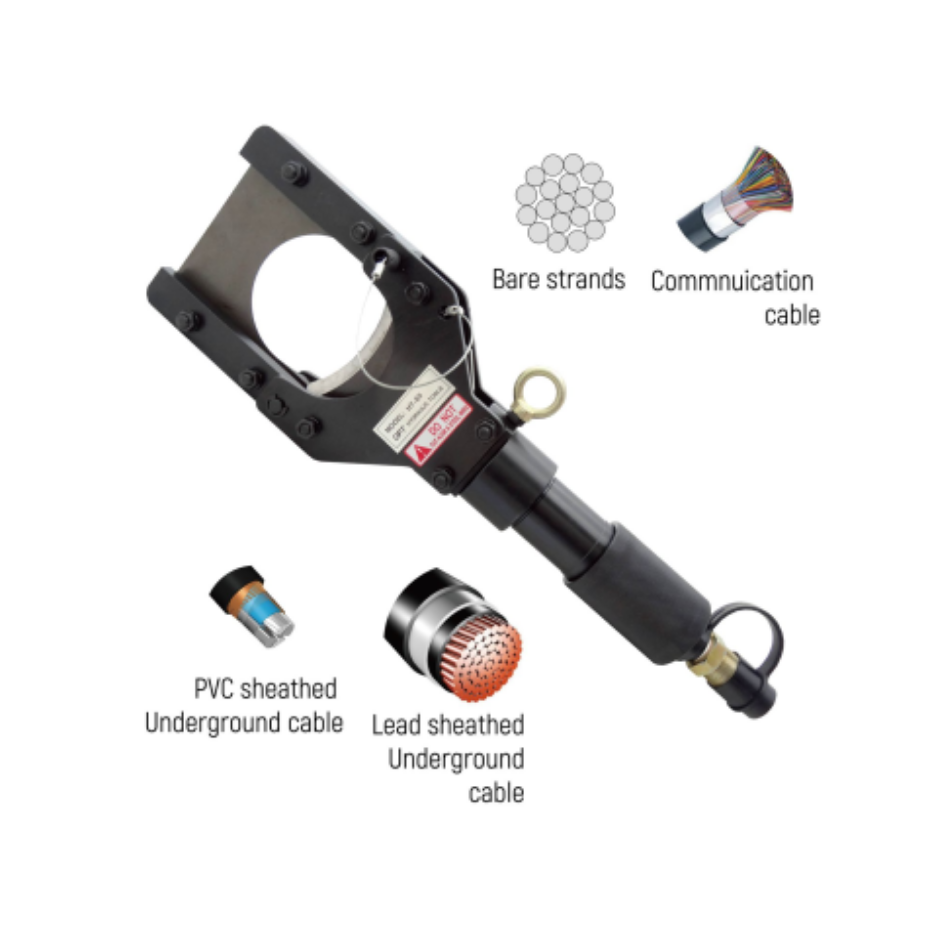

TOPT-HT-85
Hydraulic Cable Cutter Head
Applications : Cutting of Copper & Aluminium PVC Cable
Input Pressure : Max 700bar or 10,000psi
Opening Jaw : 85mm
Cutting Range : Up to 85mm OD (for Telephone Cu/Al Cable) Up to 50mm OD (for Underground Cable)
Length : 456mm
Weight : 6kg
Note : DO NOT use it to cut any rebar, steel wire or armoured cables.

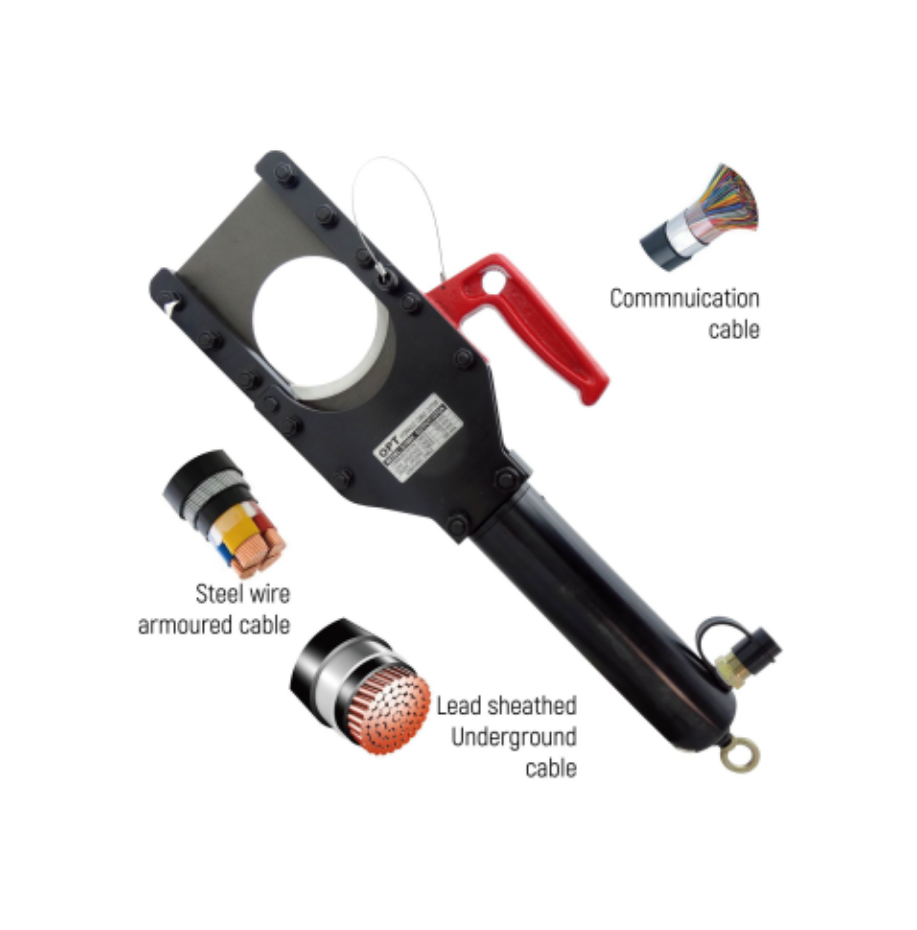

TOPT-S-100H
Hydraulic Cable Cutter Head
Applications : Cutting of Copper & Aluminium Cable including Armoured Cable
Input Pressure : Max 700bar or 10,000psi
Opening Jaw : 100mm
Cutting Range : Up to 100mm OD
Total Length : 570mm
Weight : 14kg
TOPT-CPC-85A
Hydraulic Cable Cutter Head
Applications : Cutting of Copper & Aluminium PVC Cable
Cutting Range: Bare Copper Wire Strand Max. O.D. 28mm, Bare Aluminium Wire Stand Max. O.D. 38mm, CCP Cable Max. O.D. 50mm
Length: 695mm
Weight: 7kg
TOPT-SN-06WF
For wire ferrule and end sleeve.
Ratchet type. Premium handle.
Crimping range: 0.25 – 6mm2
Weight: 0.35kg
TOPT-DL-10A
For wire ferrule and end sleeve.
Ratchet type. Ergonomic double color handle.
Crimping range: 0.08 – 10mm2
Weight: 0.6kg
TOPT-DL-16A
For wire ferrule and end sleeve.
Ratchet type. Ergonomic double color handle.
Crimping range: 0.05 – 16mm2
Weight: 0.6kg
TOPT-FN-13C
For close end terminal
Oval shape crimping
Crimping range: 0.5 – 6mm2
Weight: 0.6kg
TOPT-PA-6B
A pneumatic type crimping tool for connectors.
Output force: 1.3 tons output at air pressure 5 bars
Weight: 2.7kg
TOPT-OP-60D (Pre-order)
Double Acting Hydraulic Crimping Head
Crimping type: Hexagon
Crimping range: For connector or lug up to O.D 60mm
Output force: 60 tons output/ 38mm stroke
Oil volume: 308c.c
Weight: 28kg
EPB-4301 (Pre-order)
12 Tons Cordless Crimping Tool (18V)
43mm C-jaw opening
Insulated fixed knob
Crimping range: 35-400mm2
Weight: 6.8kg excludes battery
EPB-6301 (Pre-order)
18 Tons Cordless Crimping Tools (18V Li-Ion)
360 degrees swivel head. Pistol type crimper.
Crimping range: 35-630mm2
Weight: 7.4kg excludes battery
MEPB-22
6 Tons Cordless Crimping Tool (18V Li-Ion)
180 degrees swivel head. Inline type crimper/ Flip-open jaw type.
Crimping range: 6-300mm2
Weight: 3.1kg excludes battery
ECB-65Y (Pre-order)
12 Tons Cordless Cable Cutter (18V Li-Ion)
For Copper, Aluminium and Lead-sheathed cables.
Armored underground cable cutting 360 degree swivel head.
Weight: 11.3kg excludes battery
ECB-67 (Pre-order)
Mechanism Cordless Cutters (18V Li-Ion)
Copper and Aluminium cables: DIN cable Max. 1000mm2 (2000MCM)
Max. blade opening : 65mm
Weight: 2.8kg excludes battery
ECB-45 (Pre-order)
6 Tons Cordless Cable Cutter (18V Li-Ion)
360 degrees swivel head. Pistol type cutters.
Weight: 5.8kg excludes battery
TOPT-KH-55WF
For wire ferrule and end sleeve.
Ratchet type. PVC Handle. Smart open knob.
Crimping range: 10 – 50mm2
Weight: 0.76kg
Length: 330mm
TOPT-PG-2 (Pre-order)
For PE/PR/PVC Cable.
Stripping Range: 10-25mm diameter.
Weight : 0.43kg
Size: 220mm
