KLAUKE

Klauke is renowned for its high-quality electrical connection technology and tools for crimping, cutting, and punching. Regardless of material and cross-section, Klauke offers tested and certified connecting materials that always ensure a secure connection when used with Klauke crimping tools. In collaboration with CONWAY, we enhance this offering by providing localized support, tailored solutions, and expert guidance to meet the specific needs of our customers. Together, Klauke and CONWAY ensure reliable, efficient, and safe electrical connections, helping professionals achieve the highest standards of performance in their work.

KLAUKE Electromechanical Crimping Tool
(TKLA-EK50ML)

0.5 – 6mm2 crimping range

Max.15kN crimping force

300 crimps at 6mm2 Cu per battery charge

Weights 1.1kg with battery

KLAUKE Battery-powered Hydraulic Crimping Tool
(TKLA-EKM6022L)

16 – 300mm2 Cu crimping range

60kN crimping force

5 sec. crimping cycle

300 – 400 crimps at 150mm2 Cu Lug

Weights 3.2kg with battery

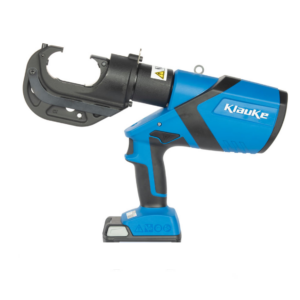

KLAUKE Battery-powered Hydraulic Crimping Tool
(TKLA- EK1264AP)

16 – 400mm2 Cu crimping range

120kN crimping force

Approx. 8 to 9 sec. crimping cycle

Weights 6.1kg with battery

KLAUKE Battery-powered Ratchet Cable Cutter
(TKLA-ESCU55AP)

Cuts up to 500mm2 Cu and 630mm2 Al (Non-armoured cable).

18.0V, 3.0Ah battery capacity

7 to 8 sec. cutting time depends on cable

Weights 3.5kg with battery

KLAUKE Electromechanical Stripping Tool
(TKLA-EKSD50ML)

6 – 35mm2 stripping range

Up to 28mm stripping length

Up to 11.5mm diameter

10.8V battery voltage

Weights 1.20kg with battery
