JOINTS AND TERMINATIONS
Wide range of Cable Joint and Termination Kits designed for Low Voltage (LV) and Medium Voltage (MV) applications. Available in both Heat Shrink and Cold Shrink types, our kits ensure reliable, safe, and long-lasting performance across various installation environments. Engineered for ease of use and exceptional durability, our solutions meet the highest industry standards for electrical power cable insulation and protection.
LV Termination & Joint Kits
LV HEAT-SHRINKABLE TERMINATION KITS
For 4-core non-armoured cables with PVC, XLPE and PE Insulation up to 1kV.
Suitable for indoor & outdoor applications.
Available size : 16mm2 – 300mm2
Accepted by TNB with Product Certification (SGP).
CAST RESIN STRAIGHT JOINT KITS
For 4-core armoured/ non-armoured cables with PVC and XLPE Insulation up to 1kV.
Available size: 6 to 240mm2
MV Termination & Joint Kits
MV HS Termination Kits 1C Outdoor
MV HS Termination Outdoor 11kV 1C 50 – 95mm2
MV HS Termination Outdoor 11kV 1C 95 -240mm2
MV HS Termination Outdoor 11kV 1C 300 – 500mm2
MV HS Termination Outdoor 11kV 1C 630 – 1000mm2
MV HS Termination Kits 3C Outdoor
MV HS Termination Outdoor 11kV 3C 16 – 35mm2
MV HS Termination Outdoor 11kV 3C 50 – 95mm2
MV HS Termination Kits 1C Indoor
MV HS Termination Indoor 11kV 1C 50 – 95mm2
MV HS Termination Indoor 11kV 1C 95 – 240mm2
MV HS Termination Indoor 11kV 1C 300 – 500mm2
MV HS Termination Indoor 11kV 1C 630 – 1000mm2
MV HS Termination Kits 3C Indoor
MV HS Termination Indoor 11kV 3C 50 – 95mm2
MV HS Termination Indoor 11kV 3C 95 – 240mm2
MV HS Termination Indoor 11kV 3C 150 – 300mm2
MV Cold Shrink Splice Kit
Design for inline splicing up to 33kV voltage class in accordance to HD 629.1 and IEC 60502-4.
Versatile design of prefabricated one-piece cold shrink splice body allows installation on wide range of cable sizes and easy installation.
Conductor Size Range: 500-630mm2
MV Cold Shrink Termination Kit (Indoor & Outdoor)
Design for terminating single-core and three-core polymeric power cables with copper wire screen or copper tape screen. Suitable for both armoured and non-armoured cable types up to 33kV voltage class.
Tested in accordance with HD629.1 and IEC 60502-4.

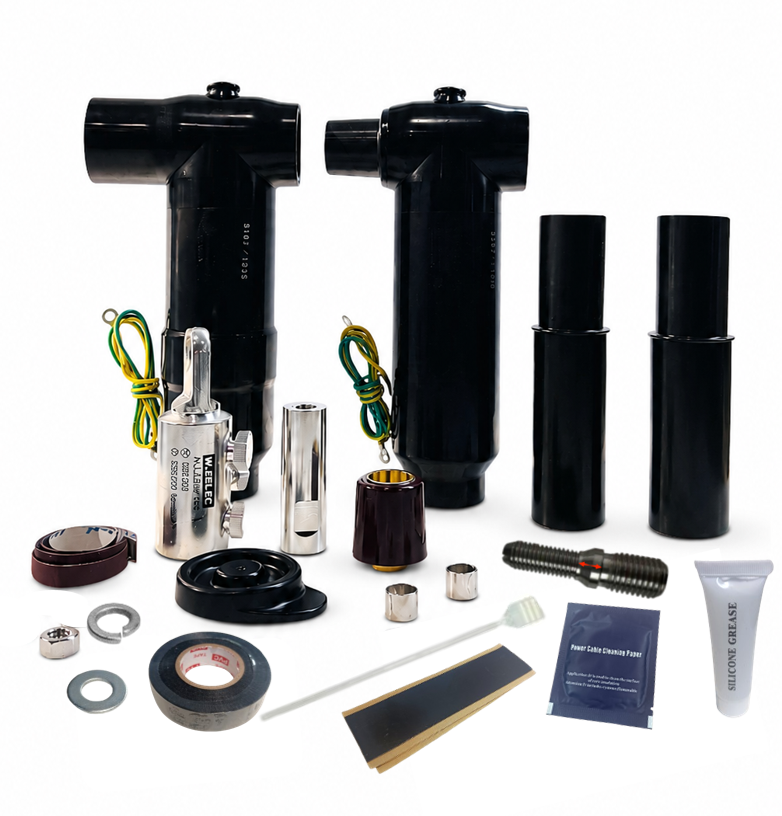

MV Screen Separable Connector
Suitable for indoor and outdoor use, and comply with EN 50180 and EN 50181. Compatible with copper and aluminum conductors up to 33kV, they include high-performance adapters for a wide range of cable sizes. Comply with EN 50180 and EN 50181 standards.
